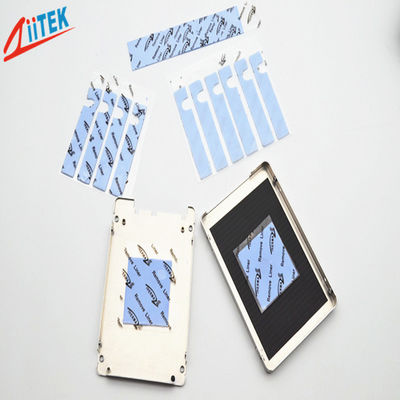

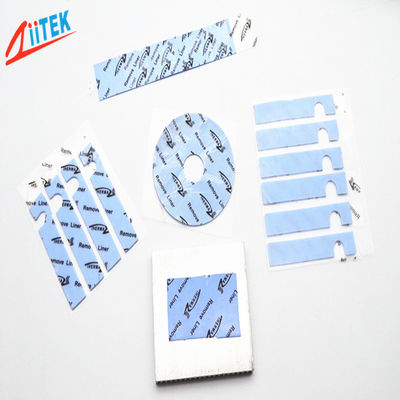

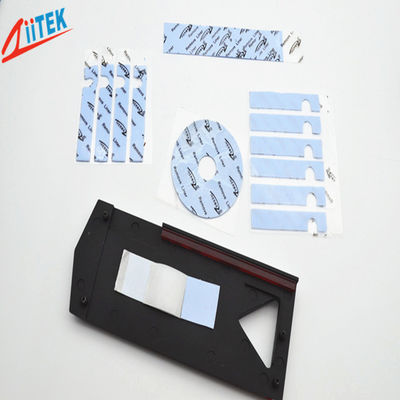

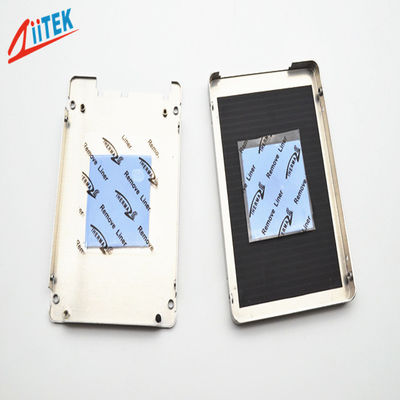

Ultra Soft Naturally Tacky Thermal Gap Filler Blue Silicone Rubber Sheet With 2.0W/mK Thermal Conductivity Designed For Heat Transfer

The TIF^®100-20-05U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.

• Good thermal conductivity: 2.0 W/mK
• Naturally tacky needing no further adhesive coating
• Soft and compressible for low stress applications
• Available in various thicknesses

• Cooling components to the chassis of frame
• High speed mass storage drives
• Heat sinking housing at LED-lit BLU in LCD
• LED TV and LED-lit lamps
• RDRAM memory modules
• Micro heat pipe thermal solutions
• Automotive engine control units
• Semiconductor automated test equipment (ATE)

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)

Standard Size: 16"×16" (406 mm×406 mm)

Reinforcement Fabric: FG (Fiberglass)

Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF^® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
