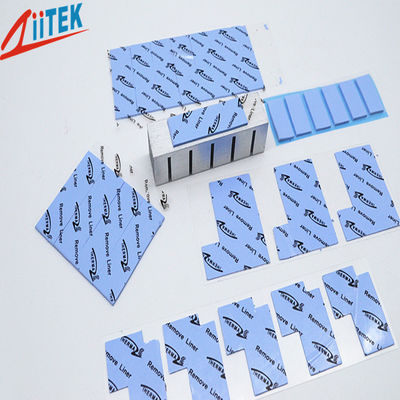

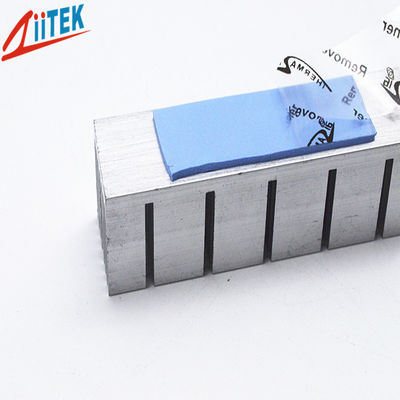

Thermal Gap Filler Silicone Pad With 3.2 W M K Thermal Conductivity And UL94 Flammability Rating For Thermal Management

Thermal Gap Filler Silicone Pad With 3.2 W M K Thermal Conductivity And UL94 Flammability Rating For Thermal Management
Thermal Gap Filler Silicone Pad With 3.2 W M K Thermal Conductivity And UL94 Flammability Rating For Thermal Management
Thermal Gap Filler Silicone Pad With 3.2 W M K Thermal Conductivity And UL94 Flammability Rating For Thermal Management Thermal Gap Filler Silicone Pad With 3.2 W M K Thermal Conductivity And UL94 Flammability Rating For Thermal Management Thermal Gap Filler Silicone Pad With 3.2 W M K Thermal Conductivity And UL94 Flammability Rating For Thermal Management

Large Image :  Thermal Gap Filler Silicone Pad With 3.2 W M K Thermal Conductivity And UL94 Flammability Rating For Thermal Management

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF 100-32-05S
Document: TIF100-32-05S_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Payment Terms: T/T
Supply Ability: 10000/day
Contact Now

Thermal Gap Filler Silicone Pad With 3.2 W M K Thermal Conductivity And UL94 Flammability Rating For Thermal Management

Description
Products Name: Thermal Gap Filler Silicone Pad With 3.2 W M K Thermal Conductivity And UL94 Flammability Rating For Thermal Management Thermal Conductivity: 3.2W/m-K
Breakdown Voltage(V/mm): ≥5500 VAC Color: Blue
Density(g/cm³）: 3.0 Hardness（ Shore 00）: 65/45
Fire Rating: UL94-V0 Keywords: Thermal Gap Filler Silicone Pad
Sample: Free Application: For Thermal Management
Highlight:

high temperature phase change materials

,

thermal conductivity silicone

,

Thermal Gap Pad 40 SHORE00

Thermal Gap Filler Silicone Pad With 3.2 W/MK Thermal Conductivity And UL94 Flammability Rating For Thermal Management


Company Profile


Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.


Products description


The TIF®100-32-05S is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.



Features:


> Good thermal conductive: 1.5 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness


Applications:


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)



Key attributes

Typical Properties of TIF®100-32-05S Series
Property Value Test method
Colo Blue Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.0 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness 65 Shore 00 45 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant @1MHz 6.0 ASTM D150
Volume Resistivity(Ohm-meter) ＞1.0X1012  ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity (W/m-K) 3.2 ASTM D5470
3.2 ISO22007


Product Specifications


Standard Thickness:0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16" X16” (406 mm X406 mm).


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
