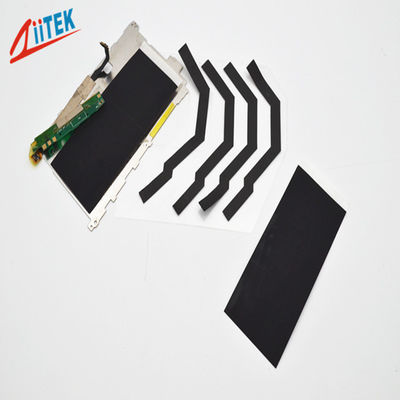

Carbon Nano Composite Copper Foil Thermal Conductive Graphite Sheets For High Speed Mass Storage Drives

Carbon Nano Composite Copper Foil Thermal Conductive Graphite Sheets For High Speed Mass Storage Drives
Carbon Nano Composite Copper Foil Thermal Conductive Graphite Sheets For High Speed Mass Storage Drives Carbon Nano Composite Copper Foil Thermal Conductive Graphite Sheets For High Speed Mass Storage Drives

Large Image :  Carbon Nano Composite Copper Foil Thermal Conductive Graphite Sheets For High Speed Mass Storage Drives

Product Details:
Place of Origin: China
Brand Name: ziitek
Certification: RoHs
Model Number: TIR™ 300C
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Delivery Time: 3-5 work days
Detailed Product Description
Product Name: Carbon Nano Composite Copper Foil Thermal Conductive Graphite Sheets For Heat Sink Keywords: Thermal Conductive Graphite Sheets
Feature: Ultra-thin And High Performance Heat Conduction Colour: Black
Material: Carbon Nano Composite Copper Foil Vacuum Sputtering Operation Temperature: -40℃ ~400℃
Thernak Condauctive: 700W/mK Hardness: 85 Shore A
Highlight:

pyrolytic graphite sheet

,

thin graphite sheet

,

Black Colour Thermal Graphite Sheet

Carbon Nano Composite Copper Foil Thermal Conductive Graphite Sheets For High Speed Mass Storage Drives



Products introduction



TIR™300C Series products are a new material with highly effective heat conductivity and absorption, stabilized device function and reduce the chance of malfunction by spreading the high temperature heat radiated from specific parts or devices.



TIR300C Series Datasheet-(E).pdf

Carbon Nano Composite Copper Foil Thermal Conductive Graphite Sheets For High Speed Mass Storage Drives 0
Feature

● Good thermal conductive: 700W/mK
● Easy to assemble

● Ultra-thin type

● RoHS Compliant

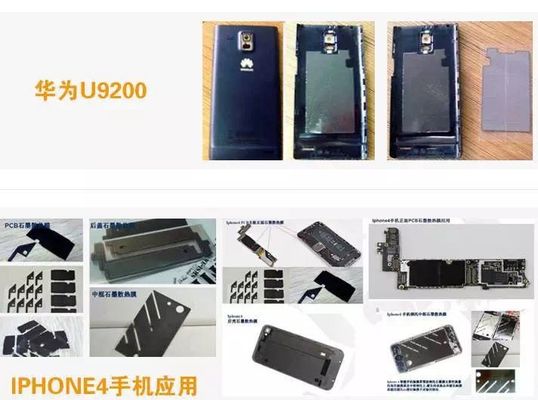

Application

● Cooling components to the chassis of frame
● High speed mass storage drives
● Heat pipe thermal solutions
● Memory Modules
● Mass storage devices
● Automotive electronics
● Set top boxes
● Audio and video components





Typical Properties of TIR™300C series
Product Name TIR™340C-T2 TIR™360-C-T2 TIR™380-C-T2 Test Method
Colour Black
Material Cearbon namo composite copper foil vacuum sputtering
Total Thickness 0.040 mm 0.060 mm 0.080mm ASTM D751
Copper foil thickness 0.038mm 0.057mm 0.077mm ASTM D751
Single-sided coating thickness 0.0010mm 0.0015mm 0.0015mm ASTM D751
Thickness Tolerance +/- 10% +/- 10% +/- 10% ASTM D751
Density 2.7 g/cc 2.7 g/cc 2.7 g/cc ASTM D297
Hardness 85 Shore A ASTM D2240
Operation Temperature -40℃~ 400℃ ******
Volume Resistivity 5.2X10³ Ohm-meter ASTM D257
Tensile Strength 30psi 35psi 40psi ASTM D412
Typical Thermal Conductivit (In Z axis) 30W/m-K 30W/m-K 30W/m-K ASTM D5470
Typical Thermal Conductivity (In X-Y axis) 700W/m-K 700W/m-K 700W/m-K ASTM D5470
Thermal Resistance @100psi 0.065 (in²℃/W) 0.079 (in²℃/W) 0.092 (in²℃/W) ASTM D5470



Standard Sheets Sizes : 500mm x 200m

TIR™ 300C series Individual die cut shapes can be supplied.

Consult the factory alternate thickness.



Packaging Details & Lead time



The packaging of Graphite Sheets

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company profile



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

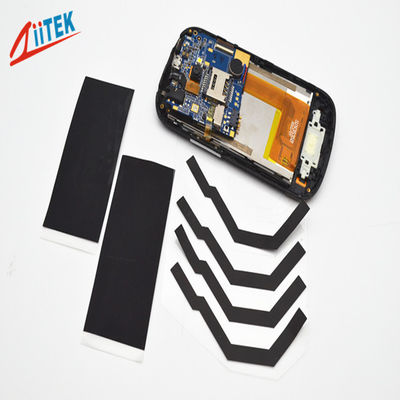

Carbon Nano Composite Copper Foil Thermal Conductive Graphite Sheets For High Speed Mass Storage Drives 1
