Semiconductor Automated Test Equipment Thermal Gap Filler 1.5W/MK For AI Processors AI Servers

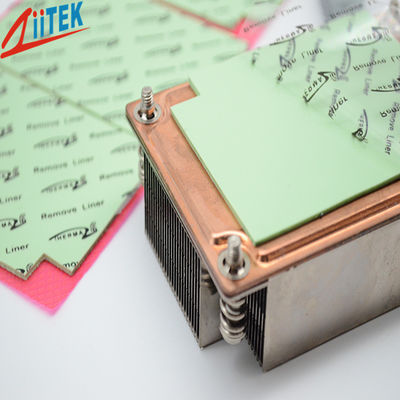

Large Image : Semiconductor Automated Test Equipment Thermal Gap Filler 1.5W/MK For AI Processors AI Servers

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF100-07E

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5work days
Payment Terms:	T/T
Supply Ability:	10000/day

Contact Now

Detailed Product Description

Products Name:	Semiconductor Automated Test Equipment Thermal Gap Filler 1.5W/MK For AI Processors AI Servers	Thermal Conductivity& Compostion:	1.5 W/m-K
Density(g/cm³）:	2.1	Keywords:	Thermal Gap Filler
Color:	Blue	Recommended Operating Temperature (℃):	-40 To 200℃
Hardness:	65/35 Shore 00	Application:	AI Processors AI Servers & Semiconductor Automated Test Equipment
Highlight:	high temperature phase change materials , thermal conductivity silicone , Thermal Gap Filler 1.5 W/MK

Semiconductor Automated Test Equipment Thermal Gap Filler 1.5W/MK For AI Processors AI Servers

The TIF^®100-07E Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

Features:

> Good thermal conductive:1.5 W/mK

> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> Good insulation performance

Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures

Typical Properties of TIF^®100-07E Series
Property	Value		Test method
Color	Green		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.1		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness (Shore 00)	65	35	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.7 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	1.5 W/m-K		ASTM D5470
	1.5 W/m-K		ISO22007

Product Specification

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm)with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mmX406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
