Gray Thermal Gap Filler 13.0 W/m-K Thermal Conductive Pad For Automotive Engine Control Units

Gray Thermal Gap Filler 13.0 W/m-K Thermal Conductive Pad For Automotive Engine Control Units
Gray Thermal Gap Filler 13.0 W/m-K Thermal Conductive Pad For Automotive Engine Control Units Gray Thermal Gap Filler 13.0 W/m-K Thermal Conductive Pad For Automotive Engine Control Units Gray Thermal Gap Filler 13.0 W/m-K Thermal Conductive Pad For Automotive Engine Control Units

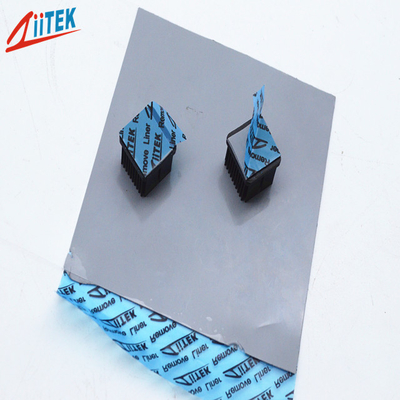

Large Image :  Gray Thermal Gap Filler 13.0 W/m-K Thermal Conductive Pad For Automotive Engine Control Units

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF800QE
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 work days
Supply Ability: 100000pcs/day
Contact Now
Detailed Product Description
Products Name: Gray Thermal Gap Filler 12.0 W/m-K Thermal Conductive Pad For Automotive Engine Control Units Density(g/cc): 3.7
Thermal Conductivity: 13.0 W/m-K Hardness (Shore 00): 35
Dielectric Constant @1MHz: 8.0 Continuos Use Temp: -40 To 200℃
Thickness: 0.03~0.20inch(0.75~5.0mm) Keywords: Thermal Conductive Pad
Highlight:

thermal conductive material

,

cpu thermal pad

,

White Thermal Gap Filler

Gray Thermal Gap Filler 13.0 W/m-K Thermal Conductive Pad For Automotive Engine Control Units



Products description



The TIF800QE Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.


Features


> Good thermal conductive: 13.0W/mK
> Naturally tacky needing no further adhesive coating
> High compliance adapts to various pressure application environments
> Available in different thickness options


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)



Typical Properties of TIF®800QE Series
Color Gray Visual
Construction Ceramic filled silicone elastomer ******
Thickness Range(inch/mm) 0.03~0.20inch(0.75mm~5.0mm)　 ASTM D374
Density(g/cc) 3.7 g/cc ASTM D792
Hardness 35 Shore 00 ASTM 2240
Recommended Operating Temperature(℃) -40 to 200℃ ******
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant @ 1MHz 8.0 ASTM D150
Volume Resistivity ≥1.0X10¹² Ohm-meter ASTM D257
Flame rating V-0 UL94(E331100)
Thermal conductivity 13.0W/m-K ASTM D5470



Product Specifications
Standard Thickness: 0.02 to 0.20 (0.50 to 5.0mm) with increments of 0.01 (0.25mm).
Standard Size: 16" X 16" (406mm X 406mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options:NS1 (Non-adhesive treatment),DC1(Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
Notes:FG(Fiberglas)provides enhanced strength, suitable for materials with thicknesses of 0.01 to 0.02 inch (0.25 to 0.5mm).
TheTIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Gray Thermal Gap Filler 13.0 W/m-K Thermal Conductive Pad For Automotive Engine Control Units 0

Packaging Details & Lead time

The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated



Company products



Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.



FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
