Product Details:
|
| Product Name: | Thermal Pad Manufacturer High Temperature Silicon Thermal Pad For AI Servers AI Processors | Hardness (shore 00): | 60/50 |
|---|---|---|---|
| Density(g/cm³): | 3.4 | Dielectric Constant @1MHz: | 7.0 |
| Sample: | Sample Free | Color: | Gray |
| Thermal Conductivity: | 6.0 W/m-K | Keywords: | Thermal Pad |
| Application: | AI Servers AI Processors | ||
| Highlight: | high temperature silicon thermal pad,thermal conductive pad for AI servers,thermal pad for AI processors |
||

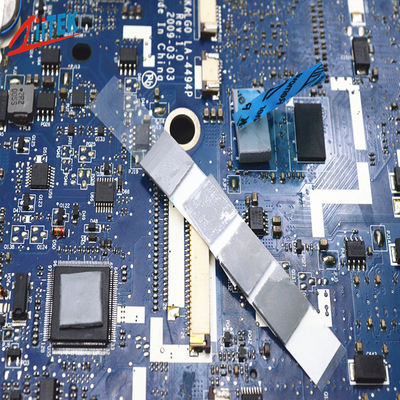

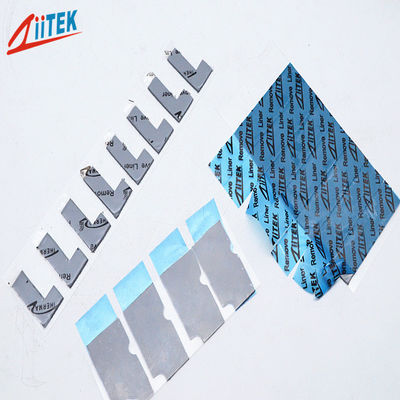

Thermal Pad Manufacturer High Temperature Silicon Thermal Pad For AI Servers AI Processors
Product Overview
The TIF®700M Series is a well-balanced, general-purpose thermal pad offering excellent thermal conductivity and moderate hardness. This balanced design provides both good surface conformity and excellent ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.
| Property | Value | Test Method |
|---|---|---|
| Color | Gray | Visual |
| Construction & Composition | Ceramic filled silicone elastomer | ZKTM J024 |
| Density (g/cm³) | 3.4 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 (0.25~0.50) / 0.030~0.200 (0.75~5.0) | ASTM D374 |
| Hardness (Shore OO) | 60 / 50 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ZKTM J025 |
| Breakdown Strength (Vac/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @1MHz | 7.0 | ASTM D150 |
| Volume Resistivity (Ohm-meter) | >1.0×10¹² | ASTM D257 |
| Flame Rating | V-0 | UL 94 (E331100) |
| Thermal Conductivity (W/m·K) | 6.0 | ASTM D5470 |
| Thermal Conductivity (W/m·K) | 6.0 | ISO 22007 |
Note: FG (Fiberglass) provides enhanced strength and is suitable for materials with thicknesses of 0.010" to 0.020" (0.25 mm to 0.50 mm).
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
With a wide range, good quality, reasonable prices, and stylish designs, Ziitek thermal conductive interface materials are extensively used in mainboards, VGA cards, notebooks, DDR & DDR2 products, CD-ROMs, LCD TVs, PDP products, server power products, down lamps, spotlights, street lamps, daylight lamps, LED server power products, and others.
