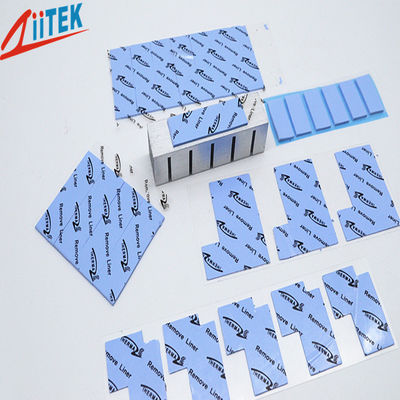

Blue 4.0 W/mK Naturally Tacky Thermal Gap Filler TIF100-40-05E with Adhesive Coating Silicone Rubber sheet -50 to 200℃,

Blue 4.0 W/mK Naturally Tacky Thermal Gap Filler TIF100-40-05E with Adhesive Coating Silicone Rubber sheet -50 to 200℃,
Blue 4.0 W/mK Naturally Tacky Thermal Gap Filler TIF100-40-05E with Adhesive Coating Silicone Rubber sheet -50 to 200℃,
video play

Large Image :  Blue 4.0 W/mK Naturally Tacky Thermal Gap Filler TIF100-40-05E with Adhesive Coating Silicone Rubber sheet -50 to 200℃,

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF100-40-05E
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Volume Resistivity: 8X1012Ohm-meter Specific Gravity: 2.85 G/cc
Heat Capacity: 1 L /g-K Color: Blue
Continuos Use Temp: -50 To 200℃ Hardness: 45 Shore 00
Highlight:

thermally conductive filler

,

thermal conductivity silicone

,

Naturally Sticky Thermal Gap Filler

Moldability for complex partsBlue 4.0 W/mK Naturally Tacky Thermal Gap Filler TIF100-40-05E with Adhesive Coating Silicone Rubber sheet -50 to 200℃

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.


  The TIF100-40-05E is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features:
>  Good thermal conductive:4.0 W/mK
>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Available in varies thickness
>  Outstanding thermal performance
> UL recognized
>Easy release construction
>Moldability for complex parts
Applications:
>  Cooling components to the chassis of frame
> Audio and video components
>  IT infrastructure
>GPS navigation and other portable devices
>  CD-Rom, DVD-Rom cooling
>  Micro heat pipe thermal solutions
>  Automotive engine control units
>  Telecommunication hardware
>  Handheld portable electronics
>  Semiconductor automated test equipment (ATE)


Typical Properties of TIF™100-40-05E Series
Color

Blue

VisualComposite ThicknesshermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
***10mils / 0.254 mm0.21
20mils / 0.508 mm0.27
Specific Gravity
2.80 g /ccASTM D297

30mils / 0.762 mm

0.39

40mils / 1.016 mm

0.43
Heat Capacity
1 l /g-KASTM C351

50mils / 1.270 mm

0.50

60mils / 1.524 mm

0.58

Hardness
45 Shore 00ASTM 2240

70mils / 1.778 mm

0.65

80mils / 2.032 mm

0.76
Tensile Strength

55 ps

ASTM D412

90mils / 2.286 mm

0.85

100mils / 2.540 mm

0.94
Continuos Use Temp
-50 to 200℃

***

110mils / 2.794 mm

1.00

120mils / 3.048 mm

1.07
Dielectric Breakdown Voltage
>10000 VACASTM D149

130mils / 3.302mm

1.16

140mils / 3.556 mm

1.25
Dielectric Constant
7.5 MHzASTM D150

150mils / 3.810 mm

1.31

160mils / 4.064 mm

1.38
Volume Resistivity
8X1012Ohm-meterASTM D257

170mils / 4.318 mm

1.43

180mils / 4.572 mm

1.50
Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

1.60

200mils / 5.080 mm

1.72
Thermal conductivity
4.0 W/m-KASTM D5470Visua l/ ASTM D751ASTM D5470


Standard Sheets Sizes:


8" x 16"(203mm x 406mm)   16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.
