Electric Insulation WHITE Thermally Conductive PLASTIC Lamp Cup PA6 2.5W/MK, 1.65g/Cm3, TEMP 150℃WITH RoHs / UL

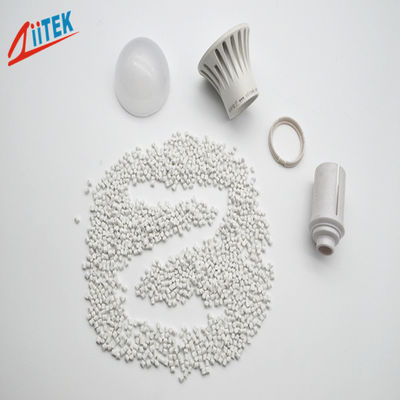

Large Image : Electric Insulation WHITE Thermally Conductive PLASTIC Lamp Cup PA6 2.5W/MK, 1.65g/Cm3, TEMP 150℃WITH RoHs / UL

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TCP200-25-06A

Payment & Shipping Terms:

Minimum Order Quantity:	100kg
Packaging Details:	25KG/Bag
Supply Ability:	1000KG/day

Contact Now

Detailed Product Description

Color:	White	Thermal Conductivity In Plane:	8.0W/mK
Thermal Conductivity Throngh Plane:	2.5W/mK	Heat Deflection Temperature:	150℃
Specific Gravity:	1.65g/cm3	Flame Retardancy:	94V0
Highlight:	thermal conductivity plastic , heat resistant plastic , 2.5W/mK thermal conductivity plastic

Electric Insulation Thermally Conductive Heat Sink Material Lamp Cup PA6 RoHs / UL

TCP™200-25-06A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.

TCP200-25-06A Thermally Conductive plastic.pdf

Application

TCP™200-25-06A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.

To potting LED Lighting heat spreader and power- driver.

Ferrite cements

Relay sealant

Power transformers and coils

tip type LED

PCB and plastics

small electrical devices

IGBTS

Transformer

LED Power Supply

LED Controller

LED Lights

LED Ceilinglamp

Monitoring the Power Box

AD-DC Power Adapters

Rainproof LED Power Supply

Waterproof LED Power Supply

Piranha wroof and common lED module

LED module for Channelletters

SMD LED module

LED Flesible strip, LED bar

Features

> Good thermal conductivity: 2.5W/mK
> Excellent thermal conductivity compared to normal engineering plastics
> Lighter than normal Aluminum housing 30% in weight
> Excellent mould ability in injection moulding
> Much higher production yield than normal Aluminum Die Casting
> Excellent flexibility in designing final products such as housings.
> UL94 V-0 .

Typical Properties of TCP^TM200-25-06A
Items	Test method	Unit	Typical data
Physical Properties
Color	Visual	*****	White
Melt index	ISO 1133	g/10min	4
Specific Gravity	ISO 1183	g/cm3	1.65
Shrinkage	ISO 294	%	0.1
Mechanical Properties
Tensile Strength	ISO 527	MPa	50
Flexural Strength	ISO 178	MPa	65
Flexural Modulus	ISO 178	MPa	12000
Impact Strength, notched	ISO 180	kJ/m2	3～4
Electrical Properties
Dielectric Breakdown Voltage	ASTM D149	VAC	>10000
Dielectric Constant, 1MHz	ASTM D150	*****	4.5
Volume Resistivity	ASTM D257	Ohm-meter	7.0 X 1012
Thermal Properties
Heat Deflection Temperature	ASTM D648	℃	150
Thermal Conductivity In Plane	ASTM E1461	W/m-K	8
Thermal Conductivity Throngh Plane	ASTM E1461	W/m-K	2.5
Flame retardancy	Min. thick. 1.0mm	Class	V-0
