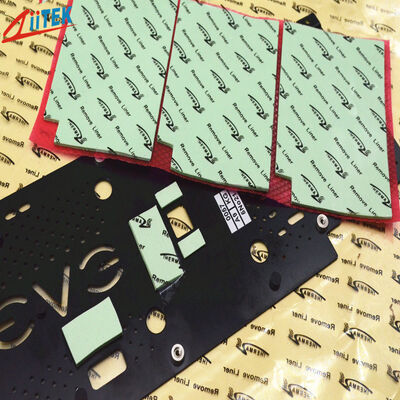

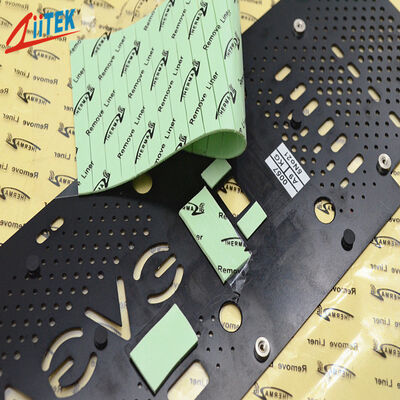

0.5mm Thickness Ultra Soft Thermally Conductive Gap Pad For CPU Heatsink Cooling

0.5mm Thickness Ultra Soft Thermally Conductive Gap Pad For CPU Heatsink Cooling

Large Image :  0.5mm Thickness Ultra Soft Thermally Conductive Gap Pad For CPU Heatsink Cooling

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF120-07E
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Payment Terms: T/T
Supply Ability: 10000/day
Detailed Product Description
Products Name: 0.5mm Thickness Ultra Soft Thermally Conductive Gap Pad For CPU Heatsink Cooling Thermal Conductivity& Conductivity: 1.5 W/m-K
Density(g/cm³): 2.1 Keywords: Thermally Gap Pad
Color: Green Recommended Operating Temperature: -40 To 200℃
Hardness: 65/35 Shore 00 Application: CPU Heatsink Cooling
Construction: Ceramic Filled Silicone Elastomer
Highlight:

thermally conductive filler

,

thermal conductivity silicone

,

Thermally Conductive Polymers Gap

0.5mm Thickness Ultra Soft Thermally Conductive Gap Pad For CPU Heatsink Cooling



Products description



The TIF®120-07E Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.


Features:


> Good thermal conductive:1.5 W/mK

> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> RoHS compliant
> UL recognized

> Good insulation performance




Applications:


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers





Typical Properties of TIF®100-07E Series
Property Value Test method
Color Green Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.1 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness (Shore 00) 65 35 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 4.7 MHz ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 1.5 W/m-K ASTM D5470
1.5 W/m-K ISO22007



Product Specification

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm)with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mmX406 mm)


Component Codes:


Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

0.5mm Thickness Ultra Soft Thermally Conductive Gap Pad For CPU Heatsink Cooling 0

Company profile



Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.



Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
