Thermal Conductivity& Compostion: | 3.0 W/m-K | Specific Gravity: | 2.85 G/cc |
---|---|---|---|
Color: | Green | Continuos Use Temp: | -50 To 200℃ |
Hardness: | 35 Shore 00 | ||
Highlight: | thermally conductive filler,thermal conductivity silicone,3.0W / m - K thermal gap filler |

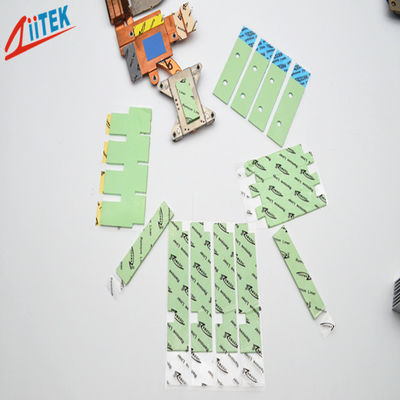

Ultrasoft CPU Heatsink Green 3.0W / m - K silicone thermal gap filler TIF100-30-07E with 35shore00
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
The TIF100-30-07E This product is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling. Thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
Features:
> Good thermal conductive:3.0 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
Typical Properties of TIF™100-30-07E Series
|
||||
Color
|
Green |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** | 10mils / 0.254 mm | 0.21 |
20mils / 0.508 mm | 0.27 | |||
Specific Gravity
|
2.80 g /cc | ASTM D297 |
30mils / 0.762 mm |
0.39 |
40mils / 1.016 mm |
0.43 | |||
Heat Capacity
|
1 l /g-K | ASTM C351 |
50mils / 1.270 mm |
0.50 |
60mils / 1.524 mm |
0.58 |
|||
Hardness
|
35 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
0.65 |
80mils / 2.032 mm |
0.76 | |||
Tensile Strength
|
55 ps |
ASTM D412 |
90mils / 2.286 mm |
0.85 |
100mils / 2.540 mm |
0.94 | |||
Continuos Use Temp
|
-50 to 200℃ |
*** |
110mils / 2.794 mm |
1.00 |
120mils / 3.048 mm |
1.07 | |||
Dielectric Breakdown Voltage
|
>10000 VAC | ASTM D149 |
130mils / 3.302mm |
1.16 |
140mils / 3.556 mm |
1.25 | |||
Dielectric Constant
|
7.5 MHz | ASTM D150 |
150mils / 3.810 mm |
1.31 |
160mils / 4.064 mm |
1.38 | |||
Volume Resistivity
|
8X1012Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.43 |
180mils / 4.572 mm |
1.50 | |||
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
1.60 |
200mils / 5.080 mm |
1.72 | |||
Thermal conductivity
|
1.5 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
Q:How can we get detailed price list?
A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.
