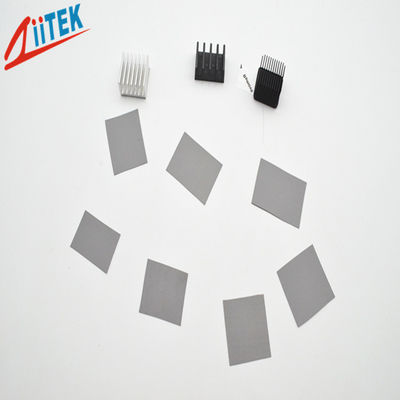

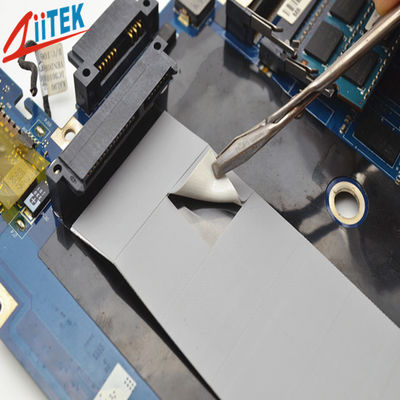

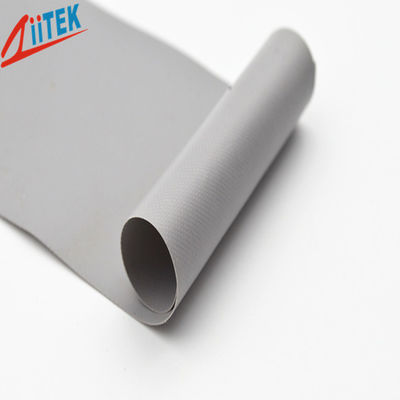

Ceramic Filled Silicone Rubber Thermal Insulation Materials For Heatsink Cooling TIS806
The TIS806 products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.
The selection of thermal conductive interface materials should consider electrical insulation, chemical stability, corrosion to the material, environmental impact and flammability and media cost. TIS800, the thermal conductive insulation sheet launched by Zhake, has the performance to meet the heat dissipation requirements of frequency converter, the substrate, the performance meets the requirements, the installation is convenient, the work efficiency is improved, and the labor cost is greatly reduced.
TIS800 Series Datasheet-(E)-REV01.pdf
Features
> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
Applications
> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface
| Typical Properties of TIS806 Series | ||||||
| Product Name | TISTM806 | TISTM808 | TISTM810 | TISTM812 | TISTM818 | Test Method |
| Color | Gray | Gray | Gray | Gray | Gray | Visual |
| Construction & Compostion |
Ceramic filled silicone rubber | *** | ||||
| Composite Thickness |
0.006"/0.152 mm |
0.008"/0.203mm | 0.010"/0.254mm | 0.012"/0.304mm | 0.018"/0.457mm | ASTM D751 |
| Specific Gravity | 2.2 g/cc | ASTM D297 | ||||
| Heat Capacity | 1 l/g-K | ASTM C351 | ||||
| Hardness | 50 Shore A | ASTM 2240 | ||||
| Tensile Strength | 450 psi | >600 psi | >600 psi | >600 psi | >600 psi | ASTM D412 |
| Continuos Use Temp | (-58 to 356℉) / (-50 to 180℃) | *** | ||||
| Electrical | ||||||
| Dielectric Breakdown Voltage | >1500 VAC | >3500 VAC | >5000 VAC | >5000 VAC | >5000 VAC | ASTM D149 |
| Dielectric Constant | 5.5 MHz | ASTM D150 | ||||
|
Volume Resistivity |
5.0X10" Ohm-meter | ASTM D257 | ||||
| Fire rating | 94 V0 | equivalent UL | ||||
| Thermal | ||||||
| Thermal conductivity | 1.6 W/m-K | ASTM D5470 | ||||
|
Thermal Impedance @50psi |
0.21℃-in²/W | 0.35℃-in²/W | 0.82℃-in²/W | 1.23℃-in²/W | 1.83℃-in²/W | ASTM D5471 |
Standard Thicknesses:
0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm) 0.009"(0.228mm)
0.010"(0.254mm) 0.012"(0.304mm) 0.018"(0.457mm)
Consult the factory alternate thickness.
Standard Sizes:
16" x 18"(406mm x 457mm) 16" x 200'(406mm x 60.9M)

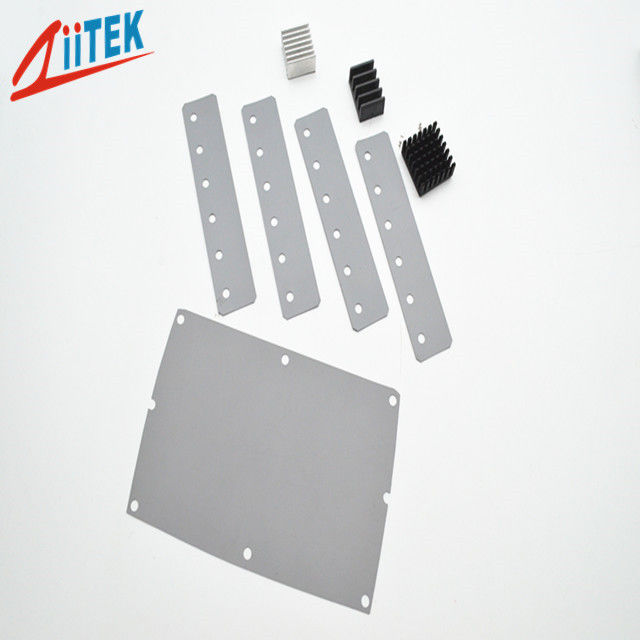

Individual die cut shapes can be supplied.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
