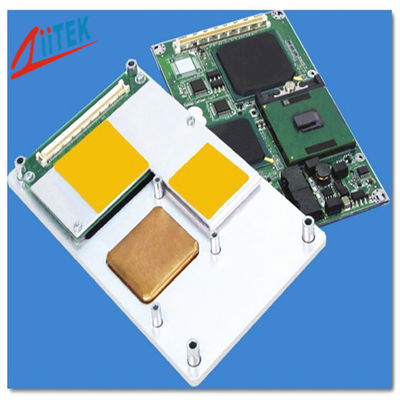

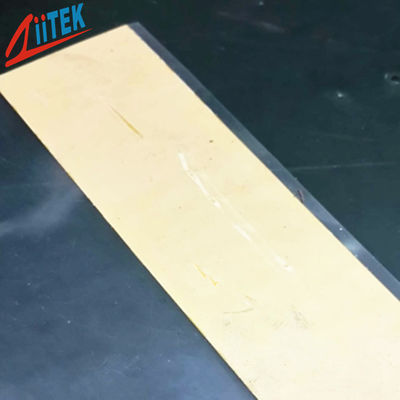

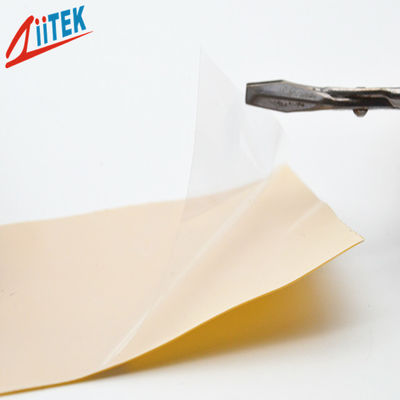

High Quality Thermal Conductive Isolating Pad RoHS And UL Compliance Cooling For LED PCB CPU GPU

High Quality Thermal Conductive Isolating Pad RoHS  And UL Compliance Cooling For LED PCB CPU GPU

Large Image :  High Quality Thermal Conductive Isolating Pad RoHS And UL Compliance Cooling For LED PCB CPU GPU

Product Details:
Place of Origin: Dongguan
Brand Name: ziitek
Certification: RoHs and UL
Model Number: TIS808K
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Packaging Details: 100pcs/bag
Delivery Time: 4 days
Payment Terms: Western Union
Supply Ability: 10000/days
Detailed Product Description
Product Name: High Quality Thermal Conductive Isolating Pad RoHS And UL Compliance Cooling For LED PCB CPU GPU Flame Rating: UL94-V0
Dielectric Breakdown Voltage: 6500 VAC Total Thickness(inch/mm): 0.008”/0.203mm
Color: Light Amber Thermal Conductivity: 1.3W/mK
Application: LED PCB CPU GPU Keywords: Thermal Conductive Isolating Pad
Highlight:

thermal conductive isolating pad

,

thermal conductive isolation pad

,

Light Amber thermal conductive pad

High Quality Thermal Conductive Isolating Pad RoHS And UL Compliance Cooling For LED PCB CPU GPU



The TIS®808K series is a thermal silicone product featuring a ceramic-filled layer coated on a polyimide film, offering excellent thermal conductivity and heat transfer performance.The TIS®808K model is designed for screw-mounted applications on device openings, with the composite polyimide fim providing superior dielectric insulation. lts soft thermal coating enhances gap-filling capability and improves handling during assembly.


Feature


> Relatively soft surface,good thermal conductivity
> High voltage insulation,low thermal resistance
> Tear-resistant and puncture-resistant

Application



> Power supplies and automotive battery packs
> Power semiconductor devices
> Audio-visual products
> Charging stations



Typical Properties of TIS®808K series
Product Name TIS®808K Test Method
Color Light Amber Visual
Polyimide Film Thickness (inch/mm) 0.001"/0.025mm ASTM D374
Total Thickness (inch/mm) 0.008"/0.203mm ASTM D374
Density 2.0 g/cc ASTM D792
Tensile Strength (Mpa) 10 ASTM D751
Recommended Operating Temperature (℃) -45~160 Ziitek test Method
Dielectric Breakdown Voltage 7000 VAC ASTM D149
Dielectric Constant @1MHz 3.8 MHz ASTM D150
Volume Resistivity (Ohm.cm) 3.5X1013Ohm-meter ASTM D257
Thermal conductivity 1.3 W/mK ASTM D5470
Flame Rating V-0 UL 94


Standard Thicknesses:

0.006" (0.152 mm), 0.008" (0.203 mm), 0.010" (0.254 mm)

For other thickness options, please contact us.


Standard Size:10"x100(254 mmx25.4m).

The TIS800K seriescanbe die-cut into variousshapes for supply.

High Quality Thermal Conductive Isolating Pad RoHS  And UL Compliance Cooling For LED PCB CPU GPU 0
