Automotive Control Units 1.0 W/MK Grey Thermally Insulation Materials For Car Batttery

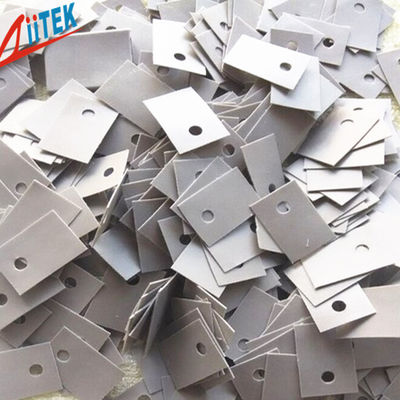

Large Image : Automotive Control Units 1.0 W/MK Grey Thermally Insulation Materials For Car Batttery

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TIS109-01

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3Word days
Payment Terms:	T/T
Supply Ability:	100000PCS/Day

Contact Now

Detailed Product Description

Product Name:	Automotive Control Units 1.0W/MK Grey Thermally Insulation Materials For Car Batttery	Thermal Conductivity:	1.0W/mK
Specific Gravity:	2.06 G/cc	Continuos Use Temp:	-45 To 180℃
Color:	Gray	Thickness Range:	0.23mm
Keywords:	Thermal Insulation Materials	Continuous Use Temp:	-45 To180℃
Highlight:	heat insulation materials , thermal insulation pads , grey Thermal Insulation Materials

Automotive Control Units 1.0 W/MK Grey Thermally Insulation Materials For Car Batttery

The TIS™109-01 products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

Features

> Soft and High thermal conductive
> High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications

> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface

> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar

Typical Properties TIF^TM109-01 Series
Color	Gray	Visual
Construction & Composition	Ceramic filled silicone elastomer / Fiberglass	******
Thickness range	0.23mm	ASTM D374
Specific Gravity	2.06 g/cc	ASTM D297
Tensile Strength	425 Kpsi	ASTM D412
Continuous Use Temperature	-45~180℃	******
Dielectric breakdown voltage	＞3500VAC	ASTM D149
Dielectric Constant@1MHz	5.5	ASTM D150
Volume Resistivity	＞4x10¹² Ohm-cm	ASTM D257
Thermal Conductivity	1.0W/mk	ISO22007.2.2
Flame Rating	94 V0	UL E331100

Product Specification

Product Thicknesses

TIS 106-01: 0.15mm

TIS 108-01: 0.20mm

TIS 109-01: 0.23mm

TIS 110-01: 0.25mm

TIS 112-01: 0.30mm

TIS 118-01: 0.45mm

Product Sizes

12" x 160"(304mm x 48.76M)
lndividual die cut shapes and custom thickness can be supplied.Pleasecontact us for confirming.

The product come standard with fiberglass reinforcement designated by the suffix " FG".
