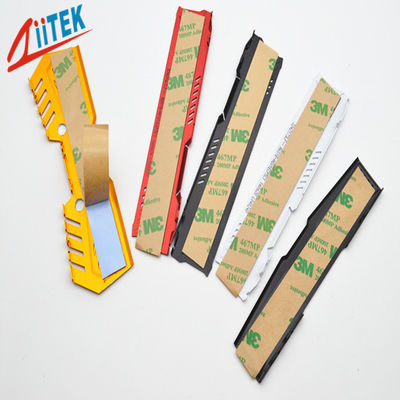

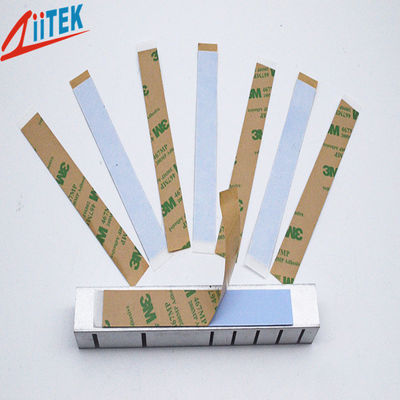

Flame Rating 94-V0 Thermal Insulation Materials Thermal Gap Filler For Effective Heat Transfer In Electrical Applications

Flame Rating 94-V0 Thermal Insulation Materials Thermal Gap Filler For Effective Heat Transfer In Electrical Applications
Flame Rating 94-V0 Thermal Insulation Materials Thermal Gap Filler For Effective Heat Transfer In Electrical Applications
video play

Large Image :  Flame Rating 94-V0 Thermal Insulation Materials Thermal Gap Filler For Effective Heat Transfer In Electrical Applications

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs and UL
Model Number: TIS109-05
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: 0.1-10 USD/PCS
Packaging Details: 1000pcs/bag
Delivery Time: 2-3Word days
Payment Terms: T/T
Supply Ability: 100000PCS/Day
Contact Now
Detailed Product Description
Products Name: Flame Rating 94-V0 Thermal Insulation Materials Thermal Gap Filler For Effective Heat Transfer In Electrical Applications Color: Blue
Dielectric Constant: 5.5 MHz Specific Gravity: 1.72g/cc
Continuos Use Temp: -45 To 180℃ Hardness: 50 Shore 00
Fire Rating: 94-V0 Thermal Conductivity: 1.0W/mK
Keywords: Thermal Insulation Materials
Highlight:

Effective Heat Transfer Thermal Gap Filler

,

Electrical Applications Thermal Gap Filler

,

94-V0 Rated Thermal Gap Filler

Flame Rating 94-V0 Thermal Insulation Materials Thermal Gap Filler For Effective Heat Transfer In Electrical Applications



The TIS™100-05 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

Flame Rating 94-V0 Thermal Insulation Materials Thermal Gap Filler For Effective Heat Transfer In Electrical Applications 0
Features


> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures


Applications


> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components

> Car Battery
> Power semiconductors
> Motor controllers

Typical Properties of  TIS100-05 series
Product Name TIS109-05 TIS112-05 TIS118-05 Test Method
Color Blue Visual
Construction &Compostion Ceramic filled silicone elastomer / Fiberglass *******
Composite Thickness 0.23mm 0.3mm 0.45mm ASTM D374
Hardness 50 Shore 00 ASTM D751
Specific Gravity 1.72g/cc ASTM D297
Tensile Strength 425 Kpsi ASTM D412
Continuous Use Temp -45 to 180℃ *******
Dielectric Breakdown Voltage >3500 VAC ASTM D149
Dielectric Constant 5.5 MHz ASTM D150
Volume Resistivity 4.0X103 Ohm-meter ASTM D257
Flame Rating 94 V0 E331100
Thermal conductivity 1.0 W/mK ASTM D5470

Standard Thicknesses:
0.009"(0.228mm),0.012"(0.304mm),0.018"(0.457mm)

Consult the factory alternate thickness.


Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.

Request adhesive on doule side with "A2" suffix.



Standard Sizes:
12" x 160"(304mm x 48.76M)
lndividual die cut shapes can be supplied.

Flame Rating 94-V0 Thermal Insulation Materials Thermal Gap Filler For Effective Heat Transfer In Electrical Applications 1

Company profile



Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.



Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
