Thermal Conductive Insulating Silicone Sheet Material For New Energy

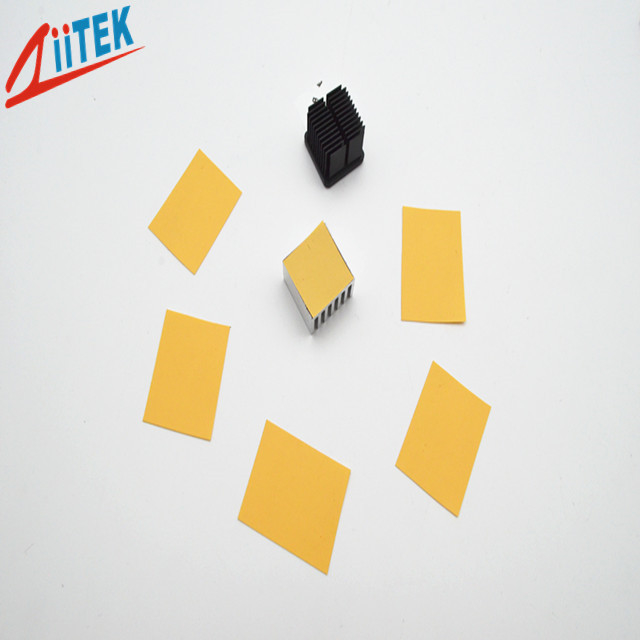

Large Image : Thermal Conductive Insulating Silicone Sheet Material For New Energy

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TIS800K series

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3Work days
Supply Ability:	100000PCS/Day

Contact Now

Detailed Product Description

Color:	Light Amber	Construction & Compostion:	Ceramic Filled Silicone Elastomer
Specific Gravity:	2.0 G/cc	Continuos Use Temp:	-40 To 130℃
Thermal Conductivity:	1.3W/mK	Volume Resistivity:	1.0X10¹³ Ohm-meter
Key Words:	Thermal Insulation Materials
Highlight:	Electrical Cooler Thermal Silicone Pad , Heat Resistant Thermal Silicone Pad , GPU CPU Thermal Silicone Pad

Thermal Conductive Insulating Silicone Sheet Material For New Energy

TIS800K Series is a high performance insulator.It combines MT Kapton film with a filled silicone rubber.The result is aproduct with good cut-through properties and excellent thermal performance.

TIS800K is designed to resist cut through in screw mounting applications while providing a more consistent breakdown voltage over other insulator constructions.The soft conformal coating on the film core provides an excellent mating surface for low pressure clip mounting applications.

Features

> Soft and highly thermal conductivity
> High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications

> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface

Typical Properties of TIS™800K series
Product Name	TIS™806K	TIS™808K	TIS™810K	Test Method
Color	Light Amber			Visual
Composite Thickness	0.005"/0.127mm	0.007"/0.178mm	0.008"/0.203mm	ASTM D374
MT Kapton ® Thickness	0.001"/0.025mm	0.001"/0.25mm	0.002"/0.50mm	ASTM D374
Total Thickness	0.006"/0.152mm	0.008"/0.203mm	0.01"/0.254mm	ASTM D374
Specific Gravity	2.0 g/cc			ASTM D297
Tensile Strength	>17.8Kpsi	>20 Kpsi	>20 Kpsi	ASTM D412
Continuous Use Temp	-40 to 130℃			***
Dielectric Breakdown Voltage	>4000 VAC	>5000 VAC	>6000 VAC	ASTM D149
Dielectric Constant	3.8MHz			ASTM D150
Volume Resistivity	3.5X10¹³ Ohm-meter			ASTM D257
Flame Rating	94 V0			equivalent UL
Thermal conductivity	1.3 W/mK
Thermal Impedance@50psi	0.12℃-in²/W	0.16℃-in²/W	0.21℃-in²/W	ASTM D5470

Standard Thicknesses:

0.006"(0.152mm) , 0.008"(0.203mm),0.010"(0.254mm)

Consult the factory alternate thickness.

Standard Sizes:

10" x 100'(254mm x 25.4M)

Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on doule side with "A2" suffix.

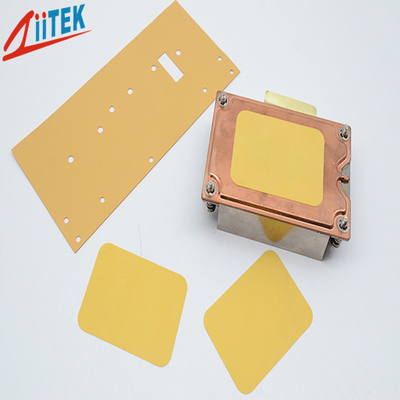

Thermal Conductive Insulating Silicone Sheet Material For New Energy 1

Packaging Details & Lead time

The packaging of Thermal Insulation Materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
