Product Details:
Payment & Shipping Terms:
|
| Product Name: | Soft Safe Simple To Apply Anti-Static Thermal Conductive Silicone Pads For Ssd Cpu Gpu Led Ic Chipset Cooling | Thickness: | Available In Varies Thicknes |
|---|---|---|---|
| Construction & Compostion: | Ceramic Filled Silicone Rubber | Specific Gravity: | 2.3 G/cc |
| Hardness: | 45 Shore 00 | Color: | Dark Gray |
| Continuos Use Temp: | -45 To 200℃ | Keywords: | Thermal Conductive Silicone Pads |
| Application: | Ssd Cpu Gpu Led Ic Chipset Cooling | ||
| Highlight: | thermally conductive filler,thermal conductivity silicone,cpu thermal conductive silicone pad |
||

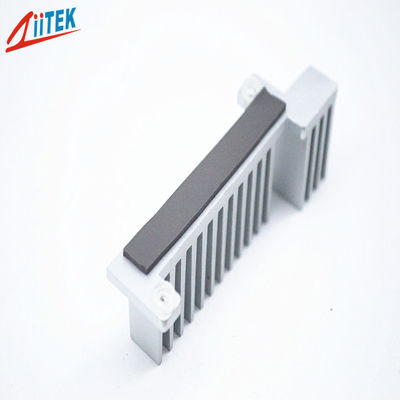

Soft Safe Simple To Apply Anti-Static Thermal Conductive Silicone Pads For Ssd Cpu Gpu Led Ic Chipset Cooling
The TIF100-15-11S thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
Features:
> Good thermal conductive: 1.5 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
> RoHS compliant
> UL recognized
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
| Typical Properties of TIF100-15-11S Series | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ******* |
| Specific Gravity | 2.3 g/cc | ASTM D297 |
| Thickness range | 0.020"-0.200" | ASTM C351 |
| Hardness | 45 Shore 00 | ASTM 2240 |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D412 |
| Operating Temp | -45 ~200℃ | ******* |
| Outgassing(TML) | 0.35% | ASTM E595 |
| Dielectric Constant | 4.5 MHz | ASTM D150 |
| Volume Resistivity | 1.0X10¹² Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | equivalent UL |
| Thermal conductivity | 1.5 W/mK | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Standard Sheets Sizes:
