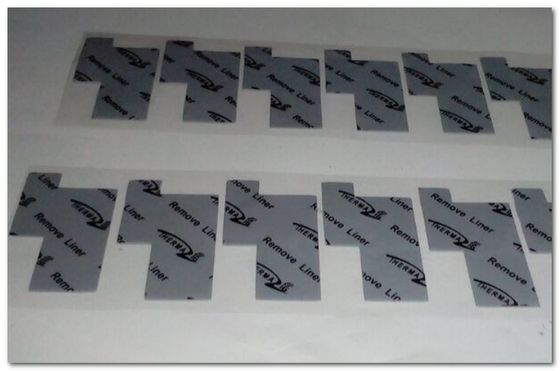

Handheld Portable Electronics high Thermal Gap Filler 4.0W/mK , grey thermal silicone rubber pad 5.5 MHz

Handheld Portable Electronics high Thermal Gap Filler 4.0W/mK , grey thermal silicone rubber pad 5.5 MHz
Handheld Portable Electronics high Thermal Gap Filler 4.0W/mK , grey thermal silicone rubber pad 5.5 MHz Handheld Portable Electronics high Thermal Gap Filler 4.0W/mK , grey thermal silicone rubber pad 5.5 MHz Handheld Portable Electronics high Thermal Gap Filler 4.0W/mK , grey thermal silicone rubber pad 5.5 MHz Handheld Portable Electronics high Thermal Gap Filler 4.0W/mK , grey thermal silicone rubber pad 5.5 MHz Handheld Portable Electronics high Thermal Gap Filler 4.0W/mK , grey thermal silicone rubber pad 5.5 MHz

Large Image :  Handheld Portable Electronics high Thermal Gap Filler 4.0W/mK , grey thermal silicone rubber pad 5.5 MHz

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF160-40-10S
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Thermal Conductivity: 4.0W/m-K Volume Resistivity: 4.0X10" Ohm-meter
Tensile Strength: 40 Psi Color: Gray
Dielectric Constant: 5.5 MHz
Highlight:

high temperature phase change materials

,

thermal conductivity silicone

,

Thermal Gap Filler 4.0W/mK

Handheld Portable Electronics Thermal Gap Filler with Adhesive Ceramic Filled Silicone Rubber


The TIF160-40-10S is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:
>  Good thermal conductive: 4.0 W/mK
>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Available in varies thickness

Applications:
>  Cooling components to the chassis of frame
>  High speed mass storage drives
>  Heat Sinking Housing at LED-lit BLU in LCD
>  LED TV and LED-lit lamps
>  RDRAM memory modules
>  Micro heat pipe thermal solutions
>  Automotive engine control units
>  Telecommunication hardware
>  Handheld portable electronics
>  Semiconductor automated test equipment (ATE)


Typical Properties of TIF160-40-10S​ Series
Color

Grey

VisualComposite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
***10mils / 0.254 mm

0.55

20mils / 0.508 mm

0.82

Specific Gravity

2.10 g/cc

ASTM D297

30mils / 0.762 mm

1.01

40mils / 1.016 mm

1.11

Heat Capacity

1 l/g-K

ASTM C351

50mils / 1.270 mm

1.27

60mils / 1.524 mm

1.45

Hardness
45
(Shore 00)
ASTM 2240

70mils / 1.778 mm

1.61

80mils / 2.032 mm

1.77

Tensile Strength

40 psi

ASTM D412

90mils / 2.286 mm

1.91

100mils / 2.540 mm

2.05

Continuos Use Temp
-50 to 200℃

***

110mils / 2.794 mm

2.16

120mils / 3.048 mm

2.29

Dielectric Breakdown Voltage
>1500~>5500 VACASTM D149

130mils / 3.302mm

2.44

140mils / 3.556 mm

2.56

Dielectric Constant
5.5 MHzASTM D150

150mils / 3.810 mm

2.67

160mils / 4.064 mm

2.77

Volume Resistivity
4.0X10"
Ohm-meter
ASTM D257

170mils / 4.318 mm

2.89

180mils / 4.572 mm

2.98

Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

3.05

200mils / 5.080 mm

3.14

Thermal conductivity
4.0W/m-KASTM D5470Visua l/ ASTM D751ASTM D5470


Standard Thicknesses:

0.010" (0.25mm)       0.020" (0.51mm)       0.030" (0.76mm)       0.040" (1.02mm)       0.050" (1.27mm)       0.060" (1.52mm)
0.070" (1.78mm)       0.080" (2.03mm)       0.090" (2.29mm)       0.100" (2.54mm)       0.110" (2.79mm)       0.120" (3.05mm)
0.130" (3.30mm)       0.140" (3.56mm)       0.150" (3.81mm)       0.160" (4.06mm)       0.170" (4.32mm)       0.180" (4.57mm)
0.190" (4.83mm)       0.200" (5.08mm)
Consult the factory alternate thickness.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.
