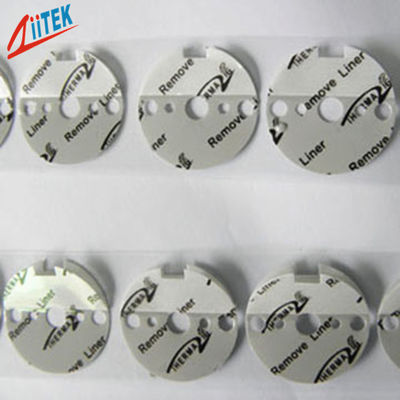

LCD TV Silicone Rubber Thermal Conductive Pad Cooling High Adhesive 2W/mK

LCD TV Silicone Rubber Thermal Conductive Pad Cooling High Adhesive 2W/mK
LCD TV Silicone Rubber Thermal Conductive Pad Cooling High Adhesive 2W/mK
video play

Large Image :  LCD TV Silicone Rubber Thermal Conductive Pad Cooling High Adhesive 2W/mK

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF™100-20-10F Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 work days
Supply Ability: 100000pcs/day
Detailed Product Description
Construction & Compostion: Ceramic Filled Silicone Rubber Thermal Conductivity: 2.0W/m-K
Hardness: 45 Shore 00 Specific Gravity: 2.75 G/cc
Continuos Use Temp: -50 To 200℃ Dielectric Breakdown Voltage: >10000 VAC
High Light:

thermal interface pad

,

heatsink thermal pad

,

Thermal Conductive Pad 2W/mK

LCD TV Silicone Rubber Thermal Conductive Pad Cooling High Adhesive 2W/mK


     The TIF™100-20-10F Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features

>  Good thermal conductive: 2.0 W/mK
>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Available in varies thickness

Applications

>  Cooling components to the chassis of frame
>  High speed mass storage drives
>  Heat Sinking Housing at LED-lit BLU in LCD
>  LED TV and LED-lit lamps
>  RDRAM memory modules
>  Micro heat pipe thermal solutions
>  Automotive engine control units
>  Telecommunication hardware
>  Handheld portable electronics
> Semiconductor automated test equipment (ATE)

Typical Properties of TIF™100-20-10F Series
Color

Gray

Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
*** 10mils / 0.254 mm 0.36
20mils / 0.508 mm 0.41
Specific Gravity
2.75 g/cc ASTM D297

30mils / 0.762 mm

0.47

40mils / 1.016 mm

0.52
Heat Capacity
1 l /g-K ASTM C351

50mils / 1.270 mm

0.58

60mils / 1.524 mm

0.65

Hardness
45 Shore 00 ASTM 2240

70mils / 1.778 mm

0.72

80mils / 2.032 mm

0.79
Tensile Strength

45 psi

ASTM D412

90mils / 2.286 mm

0.87

100mils / 2.540 mm

0.94
Continuos Use Temp
-50 to 200℃

***

110mils / 2.794 mm

1.01

120mils / 3.048 mm

1.09
Dielectric Breakdown Voltage
>10000 VAC ASTM D149

130mils / 3.302mm

1.17

140mils / 3.556 mm

1.24
Dielectric Constant
5.5 MHz ASTM D150

150mils / 3.810 mm

1.34

160mils / 4.064 mm

1.42
Volume Resistivity
7.8X10" Ohm-meter ASTM D257

170mils / 4.318 mm

1.50

180mils / 4.572 mm

1.60
Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

1.68

200mils / 5.080 mm

1.77
Thermal conductivity
2.0 W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470


LCD TV Silicone Rubber Thermal Conductive Pad Cooling High Adhesive 2W/mK 0
