Product Details:
Payment & Shipping Terms:
|
| Products Name: | High Temperature Thermal Insulation Materials For Led PVB Board Silicone Thermal Pad | Color: | Gray |
|---|---|---|---|
| Keywords: | Thermal Insulation Materials | Construction & Compostion: | Ceramic Filled Silicone Elastomer / Fiberglass |
| Specific Gravity: | 2.06 G/cc | Continuos Use Temp: | -45 To 180℃ |
| Thermal Conductivity: | 1.0W/mK | Flame Fire Rating: | 94-V0 |
| Highlight: | thermal insulation pads,thermal insulator materials,Highly compliant thermal insulation materials |
||

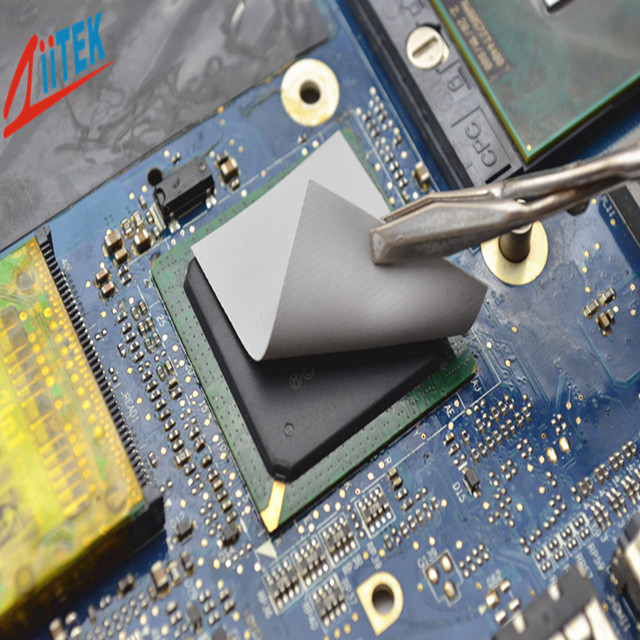

High Temperature Thermal Insulation Materials for Led PVB Board Silicone Thermal Pad
The TIS™100 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.
TIS100-01 Serice Datasheet-(E)-REV01.pdf
Features
> Soft and High thermal conductive
> High dielectric strength
> Low thermal resistance with highvoltage isolation
> Resistant to tears and punctures
Applications
> Car Battery & Power Supply
> Power semiconductors
> Audio and Video components
> Motor controllers
|
Typical Properties of TIS™100 Series |
|||||||||||||
|
Product Name |
TISTM100-01 | TISTM100-02 | TISTM100-03 | TISTM100-05 | Test Method | ||||||||
| Color | Grey | Pink | Yellow | Blue | Visual | ||||||||
|
Construction & |
Ceramic filled silicone elastomer / fiberglass | Ceramic filled silicone elastomer / fiberglass | Ceramic filled silicone elastomer / fiberglass | Ceramic filled silicone elastomer / fiberglass | *** | ||||||||
| Composite Thickness |
9/0.23 |
12/0.3 | 18/0.45 | 9/0.23 | 12/0.3 | 18/0.45 | 9/0.23 | 12/0.3 | 18/0.45 | 9/0.23 | 12/0.3 | 18/0.45 |
ASTM 2240 |
|
Specific Gravity |
1.75 | 1.75 | 1.75 | 1.75 | ASTM D297 | ||||||||
|
Heat Capacity |
1.0 | 1.0 | 1.0 | 1.0 | ASTM C351 | ||||||||
| Hardness | 50 | 50 | 50 | 50 | ASTM D751 | ||||||||
| Tensile Strength(Kpsi) | 425 | 425 | 425 | 425 | ASTM D412 | ||||||||
|
Continuos Use Temp |
-45 to 180℃ | *** | |||||||||||
| Dielectric Breakdown Voltage | >3500 | >3500 | >3500 | >3500 | ASTM D149 | ||||||||
| Dielectric Constant | 5.5 | 5.5 | 5.5 | 5.5 | ASTM D150 | ||||||||
| Volume Resistivity | 4X10¹²" | 4X10¹²" | 4X10¹²" | 4X10¹²" | ASTM D257 | ||||||||
| Fire rating | 94 V0 | 94 V0 | 94 V0 | 94 V0 | Equivalent UL | ||||||||
| Thermal conductivity | 1.0 | 1.0 | 1.0 | 1.0 | ASTM D5470 | ||||||||
| Thermal Impedance @50psi | 1.52 | 2.35 | 3.45 | 1.52 | 2.35 | 3.45 | 1.52 | 2.35 | 3.45 | 1.52 | 2.35 | 3.45 | ASTM D5470 |
Standard Thicknesses:
0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm) 0.009"(0.228mm)
0.010"(0.254mm) 0.012"(0.304mm) 0.018"(0.457mm)
Consult the factory alternate thickness.
Standard Sizes:
12" x 160(304mm x 48.76M)

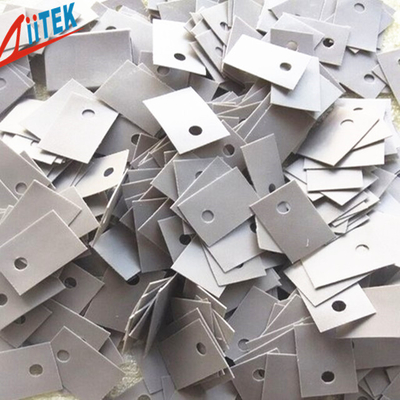

lndividual die cut shapes and customthickness can be supplied.
Pleasecontact us for confirming.
The product come standard with fiberglass reinforcement designated bythe suffix "FG".
