Product Details:
Payment & Shipping Terms:
|
| Product Name: | Customized 0.95W High Quality Phase Change Thermal Pad 0.05~0.5mm High Performance Phase Change Materials | Color: | Light Amber |
|---|---|---|---|
| Thermal Conductivity: | 1.6W/mK | Phase Transition Temperature: | 50℃~130℃ |
| Thickness: | 0.102mmT | Density: | 2.0g/cc |
| Keywords: | Phase Change Thermal Pad | ||
| Highlight: | thermal insulating materials,heat sensitive materials,0.95 W/mK Phase Change Material |
||

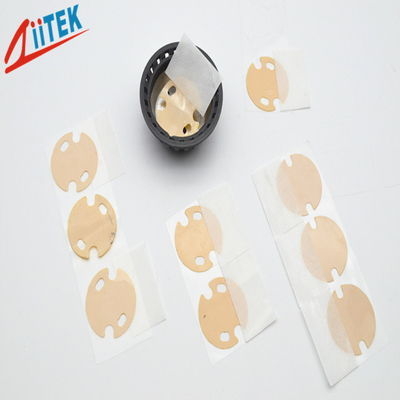

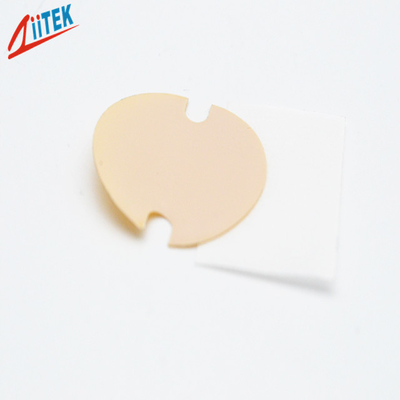

Customized 1.6W High Quality Phase Change Thermal Pad 0.102mm High Performance Phase Change Materials
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
The TICTM80OK Series products is a high thermal conduction and dielectric performance insulator pad consisting of aceramic filled low melting point compound coated on MT Kapton film.
At 50℃,TICTM800K Series surface begins to soften and flow, flling the microscopic irregularities of both thethermal solution and the integrated circuit package surface, thereby reducing thermal resistance.
TIC800K-Serice-Datasheet(E)-REV01 (1).pdf
Features:
> Highly compliant surfacecharacteristic with highthermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
Applications:
> High Frequency Microprocessors
> Notebook and Desktop PCs
> Computer Serves
> Memory Modules
> Cache Chips
> IGBTs
> Telecommunication
|
Typical Properties of TIC™800K series
|
||||
| Product Name | TIC™805K | TIC™806K | TIC™808K | Test Method |
| Color | Light Amber | Visual | ||
| Composite Thickness | 0.004"/0.102mm | 0.005"/0.127mm | 0.006"/0.152mm | ASTM D374 |
| MT Kapton ® Thickness | 0.001"/0.025mm | 0.001"/0.025mm | 0.002"/0.050mm | ASTM D374 |
| Total Thickness | 0.005"/0.127mm | 0.006"/0.152mm | 0.008"/0.203mm | ASTM D374 |
| Specific Gravity | 2.0 g/cc | ASTM D297 | ||
| Heat Capacity | 1 l/g-K | ASTM C351 | ||
| Tensile Strength | >13.5 Kpsi | >13.5 Kpsi | >17.8 Kpsi | ASTM D412 |
| Continuous Use Temp | (-58 to 266℉) / (-50 to 130℃) | *** | ||
| Dielectric Breakdown Voltage | >4000 VAC | >5000 VAC | >6000 VAC | ASTM D149 |
| Dielectric Constant | 1.8 MHz | ASTM D150 | ||
| Volume Resistivity | 3.5*10 14Ohm-meter |
ASTM D257 | ||
| Thermal conductivity | 1.6 W/mK | ASTM D5470 | ||
| Thermal Impedance@50psi | 0.12℃-in²/W | 0.13℃-in²/W | 0.16℃-in²/W | ASTM D5470 |
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online.
Contact Person: Miss. Dana
Tel: 18153789196
