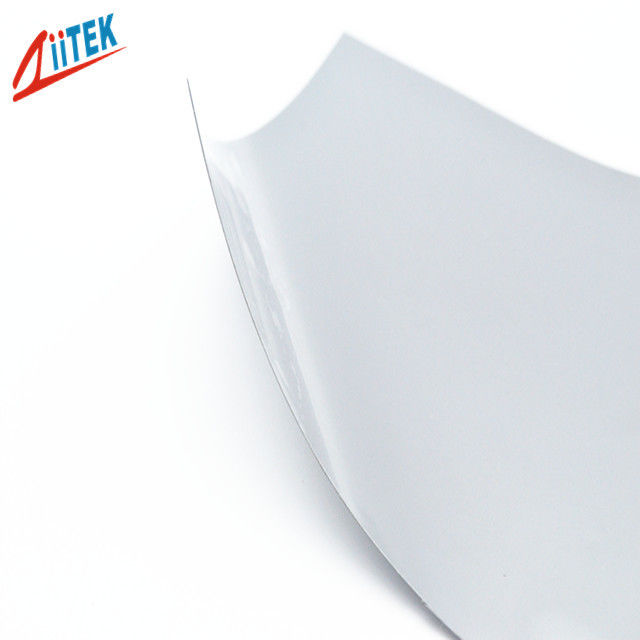

CPU Gray 2.5W/mK Thermal Conductivity Insulated Phase Changing Materials

CPU Gray 2.5W/mK Thermal Conductivity Insulated Phase Changing Materials

Large Image :  CPU Gray 2.5W/mK Thermal Conductivity Insulated Phase Changing Materials

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIC800A series
Payment & Shipping Terms:
Minimum Order Quantity: 1000PC
Price: USD 0.03PCS
Packaging Details: 1000PCS/bag
Delivery Time: 2-3Works
Supply Ability: 100000PCS/DAY
Detailed Product Description
Name: CPU Gray 2.5W/mK Thermal Conductivity Insulated Phase Changing Materials Keywords: Phase Changing Materials
Color: Gray Thermal Conductivity: 2.5 W/mK
Phase Change Softening Temperature: 50℃~60℃ Recommend Operating Temperature: -40℃~125℃
Density: 2.5g/cc Application: Memory Modules,CPU
Highlight:

thermal insulating materials

,

heat sensitive materials

,

Thermal Conductivity Materials 2.5W/mK

CPU Gray 2.5W/mK Thermal Conductivity Insulated Phase Changing Materials



The TIC®800A series is a high-performance,cost-effective thermal interface material featuring a unique grain-oriented structure that enables precise conformity to device surfaces, thereby enhancing the thermal conduction path and transfer efficiency. When the temperature exceeds its phase transition point of 50°C, the material softens and undergoes phase change,effectively filling microscopic and uneven gaps between components to form a low thermal resistance interface, significantly improving heat dissipation performance.

CPU Gray 2.5W/mK Thermal Conductivity Insulated Phase Changing Materials 0

Features
> Low thermal resistance
> Self-adhesive with no need for additional surface adhesives
> Low-pressure application environment


Applications
> Power conversion equipment

> Power supply and vehicle storage battery
> Large communication switch hardware

> LED TV,Lighting
> Laptop computer

Typical Properties of TIC®800A Series
Product Name TIC®805A TIC®806A TIC®808A TIC®810A TIC®820A Testing standards
Color Gray Visual
Composite Thickness 0.005" 0.006" 0.008" 0.010" 0.020" ASTM D374
(0.127mm) (0.152mm) (0.203mm) (0.254mm) (0.508mm)
Density 2.5g/cc ASTM D792
Work temperature -40℃~125℃ Ziitek Test Method
phase transition temperature 50℃~60℃ Ziitek Test Method
Thermal conductivity 2.5 W/mK ASTM D5470
Thermal lmpedance(℃-in²/W) @ 50 psi 0.055 0.06 0.062 0.074 0.095 ASTM D5470

Standard Thicknesses:

0.005"(0.127 mm),0.006"(0.152 mm),0.008"(0.203 mm),0.010" (0.254 mm),0.020"(0.508 mm)

For other thickness options, please contact us.


Standard size: 10”x 16"(254 mm x 406 mm),16”x 400'(406 mm x 122 m).
TIC®800A series is supplied with a white release liner and backing pad.

Die-cutting with half-cut processing can include pull tabs.custom-shaped samples are also available.
Pressure-Sensitive Adhesive: Not applicable to TIC®800A series products.Reinforcement Materal: No reinforcement materialrequired.

CPU Gray 2.5W/mK Thermal Conductivity Insulated Phase Changing Materials 1


Packaging Details & Lead time



The packaging of Phase Changing Materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



QTY 5000pcs: 3-5 working days

More than 5000PCS: Please contact us to negotiation



Company profile



With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

CPU Gray 2.5W/mK Thermal Conductivity Insulated Phase Changing Materials 2



Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.



Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
