High Compressibility Soft 6.0W Thermally Conductive Gap Filler Pads For Medical Equipment

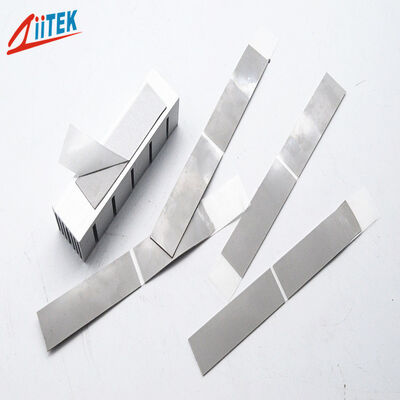

Large Image : High Compressibility Soft 6.0W Thermally Conductive Gap Filler Pads For Medical Equipment

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF100-60-62US

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Products Name:	High Compressibility Soft 6.0W Thermally Conductive Gap Filler Pads For Medical Equipment	Color:	Gray
Thermal Conductivity:	6.0W/m-K	Hardness:	65/20 Shore 00
Density:	3.4 G/cm³	Breakdown Voltage（V/mm)）:	≥5500
Flame Rating:	94-V0	Keywords:	Thermally Gap Filler Pads
Application:	Medical Equipment

High Compressibility Soft 6.0W Thermally Conductive Gap Filler Pads For Medical Equipment

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

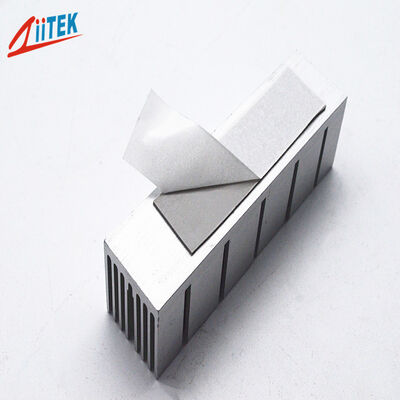

The TIF^®100-60-62US Series thermal pad is a very cost-effective general economic thermal gap filling gasket, soft with its own micro-stick, easy assembly. Under low compressing force to show good thermal conductivity and electrical insulation properties. Bedding on the gap between the heat device and the heat sink or the machine shell to extrude air to reach the full contact forming a continuous thermal conduction. Using heat sink or machine shell as a cooling device can effectively increase the cooling area to achieve a good cooling purposes.

Features

> Good thermal conductive

> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance

Applications

> Computer / communication equipment.
> Laptop / tablet / PC server.
> New energy power battery / vehicle equipment.
> Switching power supply / UPS.
> Video / security equipment.
> Any heating element and radiator.

Typical Properties of TIF^®100-30-11U Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	65 Shore 00	27 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥ 5500		ASTM D149
Dielectric Constant	7.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal Conductivity (W/m-K)	3.0		ASTM D5470
	3.0		ISO22007
Fire rating	V-0		UL 94 (E331100)

Product Specifications
Standard Thickness: 0.010" (0.25 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIFseries is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract

FAQ:

Q: What thermal conductivity test method was used to achieve the values given on the data sheets?

A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.

Q: Is GAP PAD offered with an adhesive?

A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
