Good Insulation High Performance Silicone-Based Thermally Gap Pad Filler For AI Processors AI Servers

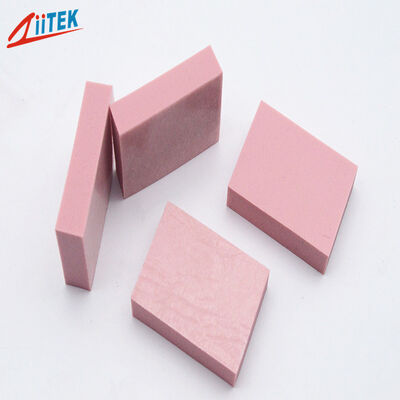

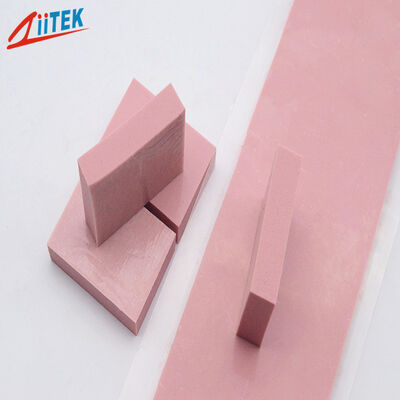

Large Image : Good Insulation High Performance Silicone-Based Thermally Gap Pad Filler For AI Processors AI Servers

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF100-50-50E

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5work days
Supply Ability:	10000/day

Contact Now

Detailed Product Description

Products Name:	Good Insulation High Performance Silicone-Based Thermally Gap Pad Filler For AI Processors AI Servers	Thickness:	Available In Varies Thicknes
Keywords:	Thermally Gap Pad Filler	Hardness:	35 Shore 00
Construction & Compostion:	Ceramic Filled Silicone Elastomer	Specific Gravity:	3.3 G/cc
Flame Rating:	94 -V0	Thermal Conductivity:	5.0 W/mK
Application:	AI Processors AI Servers

Good Insulation High Performance Silicone-Based Thermally Gap Pad Filler For AI Processors AI Servers

TIF^®100-50-50E Series is a well-balanced, general-purpose thermal pad. It offers excellent thermal conductivity and moderate hardness. This balanced design provides both good surface conformity and excellent ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.

Features:

> Good thermal conductive:5.0W/mK
> Available in varies thickness

> Good flexibility and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

Applications:

> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> AI Processors AI Servers

Typical Properties of TIF^®100-50-50E Series
Property	Value		Test method
Color	Pink		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.3		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.5)	(0.75~5.0)
Hardness	65 Shore 00	35 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	9.0MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	5.0 W/m-K		ASTM D5470
	5.0 W/m-K		ISO22007

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
