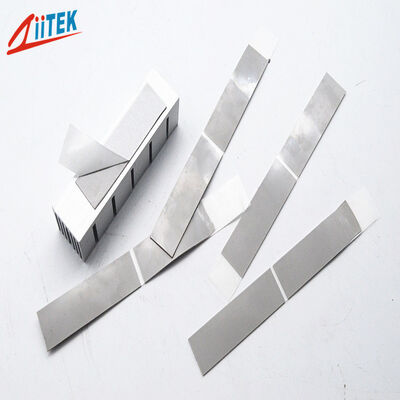

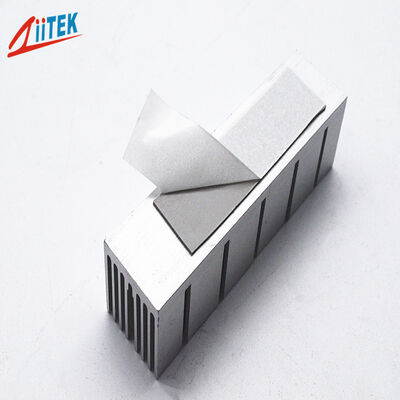

7.5W Heat Transfer Thermal Silicone Gel Pads For AI Servers AI Processors

Large Image : 7.5W Heat Transfer Thermal Silicone Gel Pads For AI Servers AI Processors

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL
Model Number:	TIF500-75-11US

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5work days
Payment Terms:	T/T
Supply Ability:	10000/day

Contact Now

Detailed Product Description

Products Name:	7.5W Heat Transfer Thermal Silicone Gel Pads For AI Servers AI Processors	Thickness:	0.50mm~5.0mm
Thermal Conductivity:	7.5W/m-K	Color:	Dark Gray
Keywords:	Thermal Silicone Pads	Application:	AI Servers AI Processors
Density(g/cm³):	3.45	Construction:	Ceramic Filled Silicone Elastomer

7.5W Heat Transfer Thermal Silicone Gel Pads For AI Servers AI Processors

The TIF^®500-75-11US thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:

> Good thermal conductive: 7.5W/mK
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

Applications:

> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations

Typical Properties of TIF^®500-75-11US Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.45		ASTM D792
Thickness Range(inch/mm)	0.020~0.030 (0.50~0.75)	0.040~0.200 (1.00~5.00)	ASTM D374
Hardness	50 Shore 00	20 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	8.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal conductivity(w/m-K)	7.5		ASTM D5470
	7.5		ISO 22007
Fire rating	V-0		UL94 (E331100)

Standard Sheets Sizes:

Standard Thickness: 0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)

Component Codes:
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

TheTIF^®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
