Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery

Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery

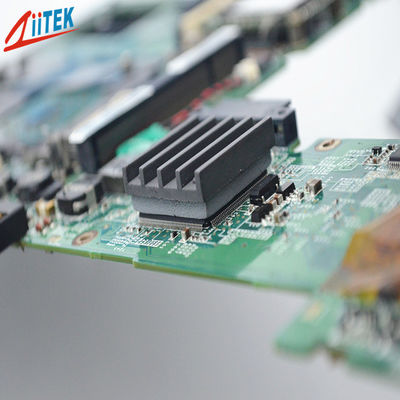

Large Image :  Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF100-02F Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 work days
Supply Ability: 100000pcs/day
Detailed Product Description
Products Name: Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery Hardness: 60 Shore 00
Application: Car Battery & Power Supply Thickness: 0.020"(0.5mm)~0.200"(5.0mm)
Thermal Conductivity: 1.5W/m-K Continuous Use Temp: -45 To 200℃
Color: Gray Keywords: Thermal Gap Filler Pad
Sample: Sample Free
Highlight:

thermal conductive silicon pad 1.5W

,

thermal gap filler pad for car battery

,

thermal conductive pad 0.5~5.0mm thick

Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery



The TIF®100-02F Series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF®100-02F is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> Easy release construction
> Electrically isolating
> High durability


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware

> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> Display card

> Power supply
> Heat pipe thermal solutions
> Memory Modules

Typical Properties of TIF®100-02F Series
Property Value Test method
Color Gray ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.3g/cc ASTM D297
Hardness 60 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.0 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

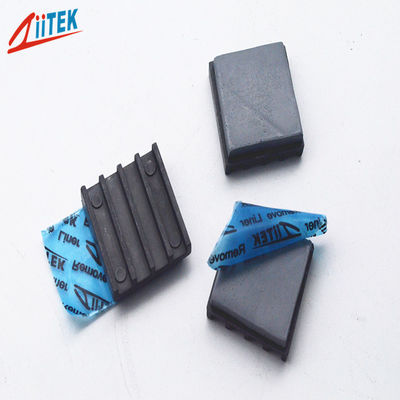

Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
