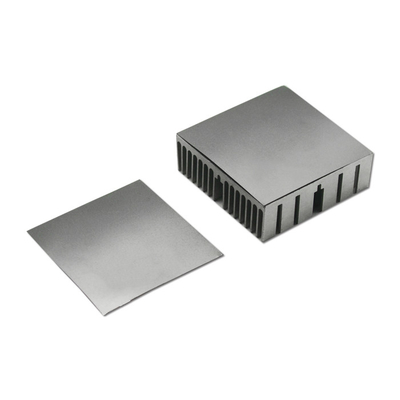

High Temperature Resistance Thermal Conductive Ultra-Thin Graphite Sheet For Laptop Notebook And Projector

Large Image : High Temperature Resistance Thermal Conductive Ultra-Thin Graphite Sheet For Laptop Notebook And Projector

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIR620

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Product Name:	High Temperature Resistance Thermal Conductive Ultra-Thin Graphite Sheet For Laptop Notebook And Projector	Color:	Black
Keywords:	Ultra-Thin Graphite Sheet	Density:	2.2g/cc
Thermal Conductivity (Z Axis Direction):	6.0W/m-K	Thermal Conductivity (X-Y Axis Direction):	240W/m-K
Hardness:	85 Shore A	Material:	Natural Graphite
Application:	Laptop Notebook And Projector
Highlight:	Ultra-Thin Thermal Conductive Graphite Sheet , Notebook Thermal Conductive Graphite Sheet , Laptop Thermal Conductive Graphite Sheet

High Temperature Resistance Thermal Conductive Ultra-Thin Graphite Sheet For Laptop Notebook And Projector

TIR™620 Series products are high-performance and heat-conductive interface materials with the reasonable prices.They can be used in applications where no requirement for electric insulation is specified.The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.

Feature
> Thermal Conductivity: 240 W/mK

> Easy to assemble
> Ultra-thin type
> RoHS Compliant

Application

> PDP,LCD Tv,Set top box

> Laptop,Notebook,Projector
> Mobile phone,Hand-held devices

> Automotive electronics

Typical Properties of TIR™600 series
Product Name	TIR™605	TIR™606	TIR™610	TIR™620	Test Method
Colour	Black
Material	Natural Graphite
Thickness	0.005" (0.127 mm)	0.006" (0.152 mm)	0.010" (0.254 mm)	0.020" (0.508 mm)	ASTM D751
Total Thickness	+/- 10%	+/- 10%	+/- 5%	+/- 5%	ASTM D751
Density	2.2 g/cc	2.2 g/cc	2.2 g/cc	2.2 g/cc	ASTM D297
Hardness	85 Shore A				ASTM D2240
Operation Temperature	-200℃~ 300℃				******
Volume Resistivity	3.2X10³ Ohm-meter				ASTM D257
Typical Thermal Conductivit (In Z axis)	6.0W/m-K	6.0W/m-K	6.0W/m-K	6.0W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	240 W/m-K	240 W/m-K	240 W/m-K	240 W/m-K	******
Thermal Resistance @100psi	0.037 (in²℃/W)	0.042 (in²℃/W)	0.057 (in²℃/W)	0.098 (in²℃/W)	ASTM D5470

Standard Sheets Sizes :

500mm x 50m

TIR™600 series Individual die cut shapes can be supplied..

Consult the factory alternate thickness.

Packaging Details & Lead time

The packaging of Natural graphite sheet

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.
