Good Performance Ultra Thin 0.017Mm 1600W/M-K Thermal Graphite Sheet For Electrical Equipment

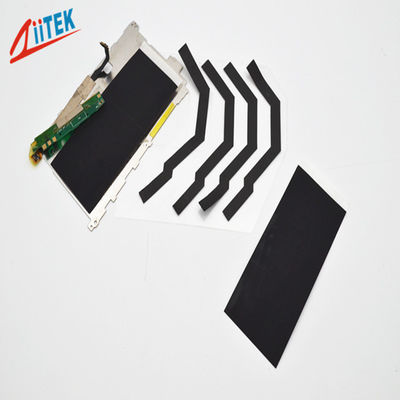

Large Image : Good Performance Ultra Thin 0.017Mm 1600W/M-K Thermal Graphite Sheet For Electrical Equipment

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIR217

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.1-100USD/KG
Packaging Details:	1000pcs/bag
Delivery Time:	3-7 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Products Name:	Good Performance Ultra Thin 0.017Mm 1600W/M-K Thermal Graphite Sheet For Electrical Equipment	Color:	Black
Density:	1.9g/cm³	Thermal Conductivity(W/m.K):	1600W/m-K
Thickness:	0.017 Mm	Keywords:	Thermal Graphite Sheet
Application:	Electrical Equipment	Recommended Operating Temperature (°C):	-40℃ ～400℃
Highlight:	pyrolytic graphite sheet , thin graphite sheet , 1700 W/m-K Thermal Graphite Sheet

Good Performance Ultra Thin 0.017Mm 1600W/M-K Thermal Graphite Sheet For Electrical Equipment

Products description

TIR^®200 Series is a high-performance thermal management material_based on high-qualitygraphene. Through innovative microstructural design, it achieves ultra-high in-plane thermal conductivity while maintaining exceptional flexibility. This product rapidly and uniformly_spreads heat from the hotspots of electronic devices across the entire surface, effectively reducing hotspot temperatures and ensuring stable equipment operation. Its excellent flexibility allows it to easily conform to complex application scenarios such as curved surfaces and foldable designs, providing an eficient and reliable thermal dissipation solution for next-generation electronic products.

Feature

>Ultra-high thermal conductivity, far exceeding traditional metals
>Excellent flexibility and bending resistance
>Easy to process and compatible with various components
>Broad operating temperature range
>Ultra-thin and lightweight

Application

>Electric Vehicle (EV) Power Battery Packs
>High-performance Servers
>Communication and Electrical Equipment
>Transportation Equipment
>Electronic Products

Typical Properties of TIR^®200 series
Product Name	TIR^®217	TIR^®225	TIR^®250	Test Method
Color	Black			Visual
Structure & Components	Graphene			-
Thickness(mm)	0.017	0.025	0.040	ASTM D374
Density(g/cm³)	1.9	1.8	1.7	ASTM D792
Tensile Strength(Mpa)	30	22	22	ASTM D412
Thermal Conductivity(W/m.K)	1600	1350	900	ASTM D5470
Thermal Diffusivity(cm²/s)	9.0	8.0	7.0	ASTM E1461
Specific Heat Capacity (J/g·°C) @50°C	0.75			ASTM E1269
Recommended Operating Temperature (°C)	-40℃ ～400℃			-

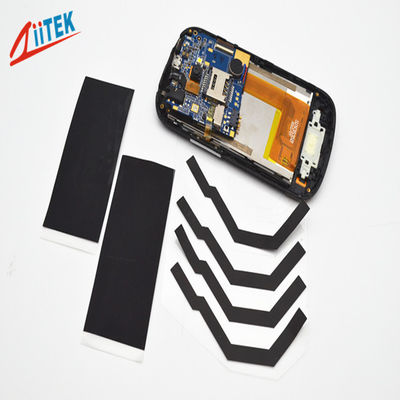

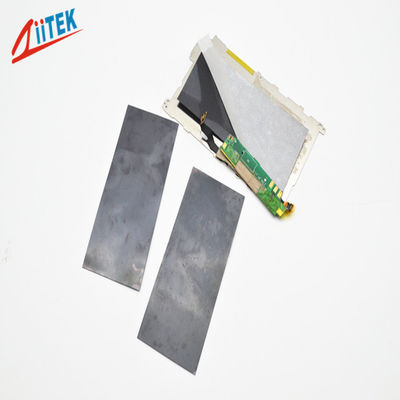

Good Performance Ultra Thin 0.017Mm 1600W/M-K Thermal Graphite Sheet For Electrical Equipment 0

Company profile

Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.
