High Thermal Conductive Flexible Graphite Sheet For Smart Phone

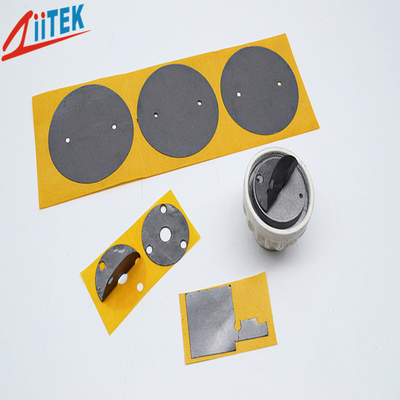

Large Image : High Thermal Conductive Flexible Graphite Sheet For Smart Phone

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIR™600 series

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3 work days

Contact Now

Detailed Product Description

Materials:	Natural Graphite	Color:	Black
Hardness:	2.2 G/cc	Thermal Conductivity (Z Axis Direction):	6.0W/m-K
Thermal Conductivity (X-Y Axis Direction):	240W/m-K	Operating Temperature:	-200℃ ～300℃
Highlight:	High Thermal Conductive Graphite Sheet , Smart Phone Graphite Sheet , Flexible Graphite Sheet

Manufacturer Wholesale High Thermal Conductive Flexible Graphite Sheet For Smart Phone

TIR™600 Series products are high-performance and heat-conductive interface materials with the reasonable prices.They can be used in applications where no requirement for electric insulation is specified.The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.

TIR-600-Series-Natural-graphite-gasket (1).pdf

Features

Good thermal conductive 2400W/mK

Soft and Compressible for low stress applications

Available in varies thickness

Soft and compressible for low stress applications

large tolerance stack ups

Broad range of hardnesses available

Moldability for complex parts

Good thermal performance

High tack surface reduces contact resistance

RoHS compliant

UL recognized

Ambient and accelerated cure schedules

Applications

Cooling components to the chassis of frame

High speed mass storage drives

Heat Sinking Housing at LED-lit BLU in LCD

LED TV and LED-lit lamps

RDRAM memory modules

Micro heat pipe

Automotive engine control units

Telecommunication hardware

Cooling components to chassis frame or other mating components

Home and small office network equipment

Handheld portable electronics

Plasma supply panels

Semiconductor automated test equipment (ATE)

Heat pipe thermal solutions

Memory Modules

Mass storage devices

Automotive electronics

Radios

Power electronics

Set top boxes

Audio and video components

IT infrastructure

GPS navigation and other portable devices

Chassis walls to other surfaces

CD-Rom, DVD-Rom cooling

LED Power Supply

LED Controller

LED Lights

LED Ceilinglamp

Monitoring the Power Box

AD-DC Power Adapters

Rainproof LED Power Supply

Waterproof LED Power Supply

Piranha wroof and common lED module

LED module for Channelletters

SMD LED module

LED Flesible strip, LED bar

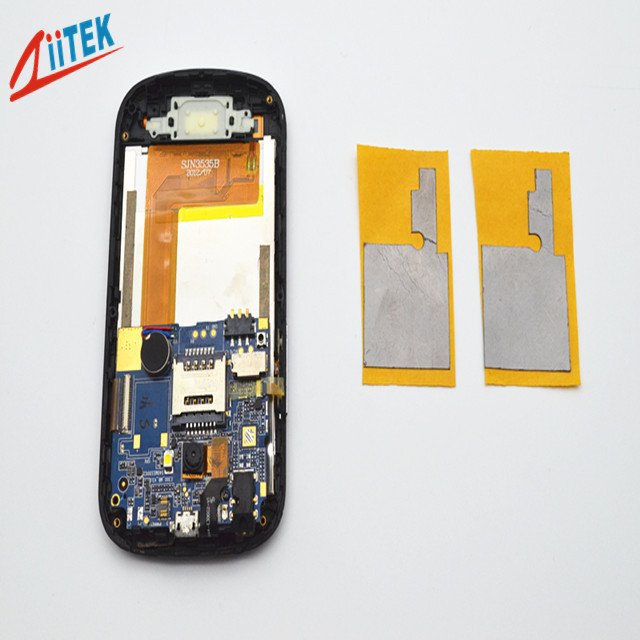

High Thermal Conductive Flexible Graphite Sheet For Smart Phone 0

Typical Properties of TIR™600 series
Product Name	TIR™605	TIR™606	TIR™610	TIR™620	Test Method
Colour	Black
Material	Natural Graphite
Thickness	0.005" (0.127 mm)	0.006" (0.152 mm)	0.010" (0.254 mm)	0.020" (0.508 mm)	ASTM D751
Total Thickness	+/- 10%	+/- 10%	+/- 5%	+/- 5%	ASTM D751
Density	2.2 g/cc	2.2 g/cc	2.2 g/cc	2.2 g/cc	ASTM D297
Hardness	85 Shore A				ASTM D2240
Operation Temperature	-200℃~ 300℃				******
Volume Resistivity	3.2X10³ Ohm-meter				ASTM D257
Typical Thermal Conductivit (In Z axis)	6.0W/m-K	6.0W/m-K	6.0W/m-K	6.0W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	240 W/m-K	240 W/m-K	240 W/m-K	240 W/m-K	******
Thermal Resistance @100psi	0.037 (in²℃/W)	0.042 (in²℃/W)	0.057 (in²℃/W)	0.098 (in²℃/W)	ASTM D5470

Standard Sheets Sizes :

500mm*50m

TIR™ 600 series Individual die cut shapes can be supplied.

Consult the factory altermate thickness

High Thermal Conductive Flexible Graphite Sheet For Smart Phone 1

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge
