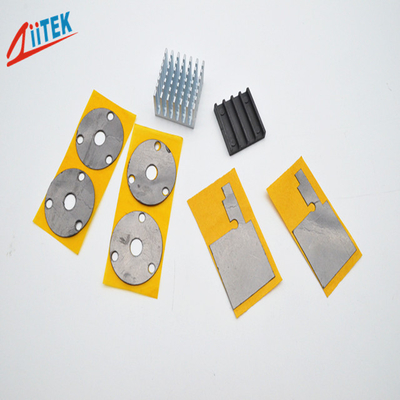

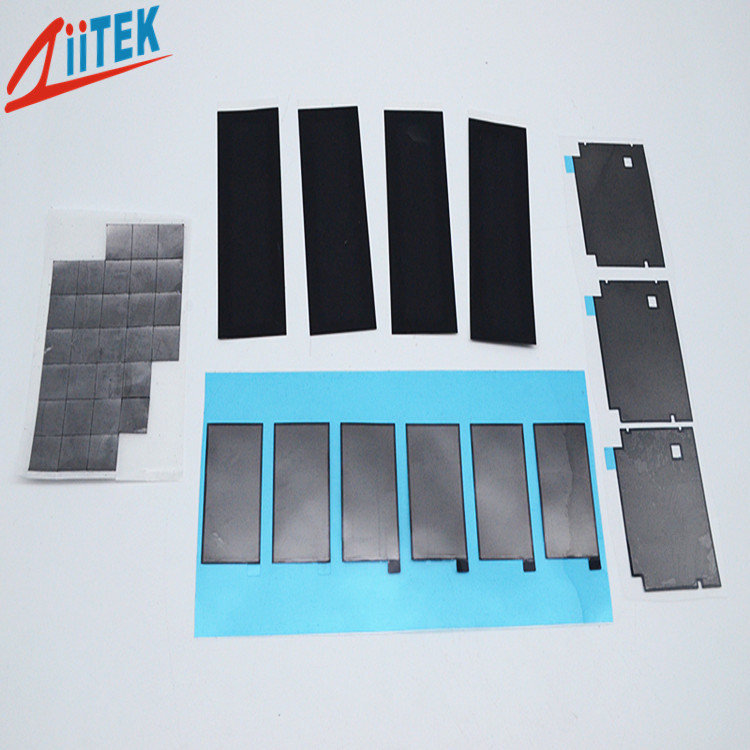

Ultra Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets

Ultra Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets
Ultra Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets Ultra Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets

Large Image :  Ultra Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIR300 series
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Packaging Details: 1000pcs/bag
Delivery Time: 2-3 work days
Contact Now
Detailed Product Description
Materials: Natural Graphite Color: Black
Hardness: 2.2 G/cc Thermal Conductivity (Z Axis Direction): 10.0W/m-K
Thermal Conductivity (X-Y Axis Direction): 150W/m-K Operating Temperature: -200℃ ～300℃
Keywords: Ultra Soft Graphite Sheet
Highlight:

High Conductivity Thermal Graphite Sheet

,

Ultra Soft Thermal Graphite Sheet

,

Film Graphite Sheets

Ultra Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets

The TIR™300 Series products are high performance thermal conductive interface materials. The uniquegrain orientation and plate structure enable these products to adapt to different contact surfacesclosely, and thus maximizes the ability of heat conduction.



TIR-300-Series.pdf


Features



Naturally tacky needing no further adhesive coating
Soft and Compressible for low stress applications
Available in varies thickness
Soft and compressible for low stress applications
large tolerance stack ups
Broad range of hardnesses available
Moldability for complex parts
Good thermal performance
High tack surface reduces contact resistance
RoHS compliant
UL recognized
Ambient and accelerated cure schedules
thermal conductivity: 10 W/mK



Ultra Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets 0


Applications


Cooling components to the chassis of frame
High speed mass storage drives
Heat Sinking Housing at LED-lit BLU in LCD
LED TV and LED-lit lamps
RDRAM memory modules
Micro heat pipe
Automotive engine control units
Telecommunication hardware
Cooling components to chassis frame or other mating components
Home and small office network equipment
Handheld portable electronics
Plasma supply panels
Semiconductor automated test equipment (ATE)
Heat pipe thermal solutions
Memory Modules
Mass storage devices
Automotive electronics
Radios
Power electronics
Set top boxes
Audio and video components
IT infrastructure
GPS navigation and other portable devices
Chassis walls to other surfaces
CD-Rom, DVD-Rom cooling
LED Power Supply
LED Controller
LED Lights
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters
Rainproof LED Power Supply
Waterproof LED Power Supply
Piranha wroof and common lED module
LED module for Channelletters
SMD LED module
LED Flesible strip, LED bar





Typical Properties of TIRTM300 series
Product Name TIR312 TIR317 TIR325 TIR332 TIR340 Test Method
Colour Black
Material Synthetic graphite
Thickness 0.012 mm 0.012 mm 0.012 mm 0.012 mm 0.012 mm ASTM D751
Total Thickness +/- 10% +/- 10% +/- 10% +/- 10% +/- 10% ASTM D751
Density 1.9 g/cc 2.0 g/cc 1.8 g/cc 1.9 g/cc 1.8 g/cc ASTM D297
Hardness 85 Shore A ASTM D2240
Operation Temperature -40℃~ 400℃ ******
Volume Resistivity 3.2X10³ Ohm-meter ASTM D257
Typical Thermal Conductivit (In Z axis) 4.2W/m-K 5.0W/m-K 6.0W/m-K 8.0W/m-K 12 W/m-K ASTM D5470
Typical Thermal Conductivity (In X-Y axis) 1600 W/m-K 1700W/m-K 1500W/m-K 1400W/m-K 1200W/m-K ******
Thermal Resistance @100psi 0.028 (in²℃/W) 0.030 (in²℃/W) 0.035 (in²℃/W) 0.045 (in²℃/W) 0.060 (in²℃/W) ASTM D5470



Standard Sheets Sizes :
1.185mm x 220mm  2.195mm x 240mm  3.220mm x 320mm

TIR™300 Series lndividual die cut shapes can be supplied.

Consult the factory alternate thickness.





Ultra Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets 1

Company profile



Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Ultra Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets 2



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge
