Ultra-Thin High Purity Graphite Sheet for Effective Thermal Conductivity

Large Image : Ultra-Thin High Purity Graphite Sheet for Effective Thermal Conductivity

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIR™606 series

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3 work days

Contact Now

Detailed Product Description

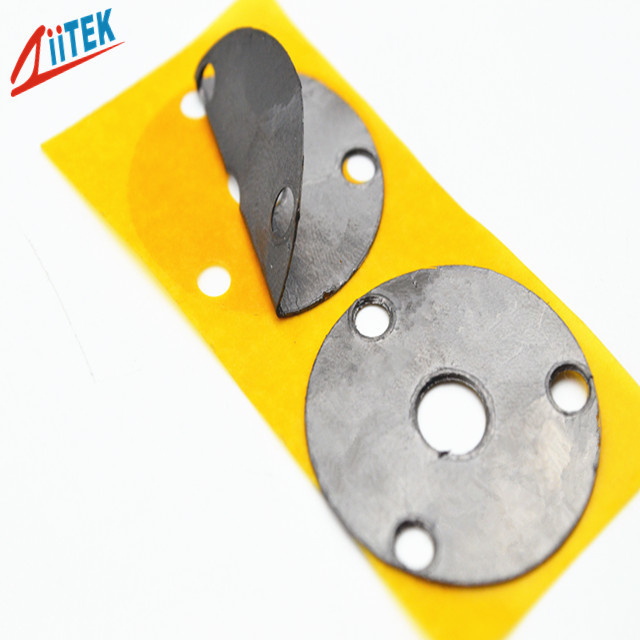

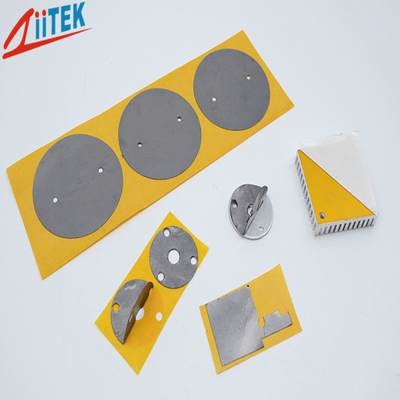

Products Name:	Ultra-Thin High Purity Graphite Sheet Graphite Paper Carbon Paper Black Thermal Conductive Graphite Sheet	Color:	Black
Keywords:	Thermal Graphite Sheet	Thermal Conductivity (Z Axis Direction):	6.0W/m-K
Feature:	Easy To Assemble & Ultra Soft	Materials:	Natural Graphite
Thermal Conductivity (X-Y Axis Direction):	240W/m-K	Operating Temperature:	-200℃ ～300℃
Hardness:	2.2 G/cc
Highlight:	Ultra-Thin Graphite Sheet , High Purity Graphite Sheet , Effective Thermal Conductivity Graphite Sheet

Ultra-Thin High Purity Graphite Sheet Graphite Paper Carbon Paper Black Thermal Conductive Graphite Sheet

TIR™600 Series products are high-performance and heat-conductive interface materials with the reasonable prices.They can be used in applications where no requirement for electric insulation is specified.The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.

TIR-600-Series-Natural-graphite-gasket (1).pdf

Features

> Good thermal conductive 2400W/mK
> Soft and Compressible for low stress applications
> Available in varies thickness
> Soft and compressible for low stress applications
> Good thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
> Ambient and accelerated cure schedules

Applications

> LED TV and LED-lit lamps
> RDRAM memory modules
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units

Typical Properties of TIR™600 series
Product Name	TIR™605	TIR™606	TIR™610	TIR™620	Test Method
Colour	Black
Material	Natural Graphite
Thickness	0.005" (0.127 mm)	0.006" (0.152 mm)	0.010" (0.254 mm)	0.020" (0.508 mm)	ASTM D751
Total Thickness	+/- 10%	+/- 10%	+/- 5%	+/- 5%	ASTM D751
Density	2.2 g/cc	2.2 g/cc	2.2 g/cc	2.2 g/cc	ASTM D297
Hardness	85 Shore A				ASTM D2240
Operation Temperature	-200℃~ 300℃				******
Volume Resistivity	3.2X10³ Ohm-meter				ASTM D257
Typical Thermal Conductivit (In Z axis)	6.0W/m-K	6.0W/m-K	6.0W/m-K	6.0W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	240 W/m-K	240 W/m-K	240 W/m-K	240 W/m-K	******
Thermal Resistance @100psi	0.037 (in²℃/W)	0.042 (in²℃/W)	0.057 (in²℃/W)	0.098 (in²℃/W)	ASTM D5470

Standard Sheets Sizes :

500mm*50m

TIR™ 600 series Individual die cut shapes can be supplied.

Consult the factory altermate thickness

Ultra-Thin High Purity Graphite Sheet for Effective Thermal Conductivity 1
