1500W/m-K Thermal Conductive Graphite Sheet For Mobile Phone

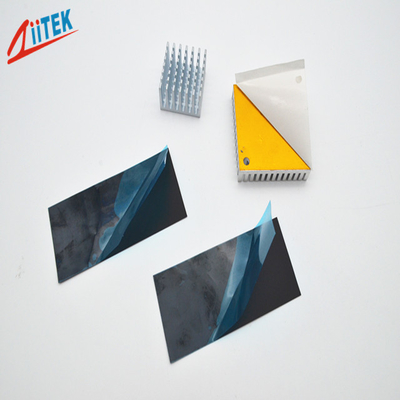

Large Image : 1500W/m-K Thermal Conductive Graphite Sheet For Mobile Phone

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIR™325

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3 work days

Contact Now

Detailed Product Description

Products Name:	Thermal Conductive Graphite Sheet For Mobile Phone	Color:	Black
Density:	1.8g/cc	Thermal Conductivity (Z Axis Direction):	6.0W/m-K
Thermal Conductivity (X-Y Axis Direction):	1500W/m-K	Keywords:	Thermal Graphite Sheet
Application:	Laptop,Notebook,Automotive,Mobile Phone	Thickness:	0.025 Mm
Highlight:	Mobile Phone Thermal Conductive Graphite Sheet , Thermal Conductive Graphite Sheet , Mobile Phone Graphite Sheet

Thermal Conductive Graphite Sheet For Mobile Phone

TIR™300 Series products are high performance thermal conductive interface materials. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus maximizes the ability of heat conduction.

Feature

> Easy to assemble
> Ultra-thin type
> RoHS Compliant
> Thermal Conductivity: 1700W/mK
> Reduce hot spots and protect sensitive areas
> Light weight
> Flexible
> Easy to assemble.

Application

> PDP,LCD TV
> Laptop,Notebook,Projector
> Mobile phone
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD

Typical Properties of TIR300 series
Product Name	TIR312	TIR317	TIR325	TIR332	TIR340	Test Method
Colour	Black
Material	Synthetic graphite
Thickness	0.012 mm	0.017 mm	0.025 mm	0.035 mm	0.040 mm	ASTM D751
Total Thickness	+/- 10%	+/- 10%	+/- 10%	+/- 10%	+/- 10%	ASTM D751
Density	1.9 g/cc	2.0 g/cc	1.8 g/cc	1.9 g/cc	1.8 g/cc	ASTM D297
Hardness	85 Shore A					ASTM D2240
Operation Temperature	-40℃~ 400℃					******
Volume Resistivity	3.2X10³ Ohm-meter					ASTM D257
Typical Thermal Conductivit (In Z axis)	4.2W/m-K	5.0W/m-K	6.0W/m-K	8.0W/m-K	12 W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	1600 W/m-K	1700W/m-K	1500W/m-K	1400W/m-K	1200W/m-K	******
Thermal Resistance @100psi	0.028 (in²℃/W)	0.030 (in²℃/W)	0.035 (in²℃/W)	0.045 (in²℃/W)	0.060 (in²℃/W)	ASTM D5470

Standard Sheets Sizes :

1.185mm x 220mm

2.195mm x 240mm

3.220mm x 320mm

TIR™300 series Individual die cut shapes can be supplied.
Consult the factory alternate thickness.

Company profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

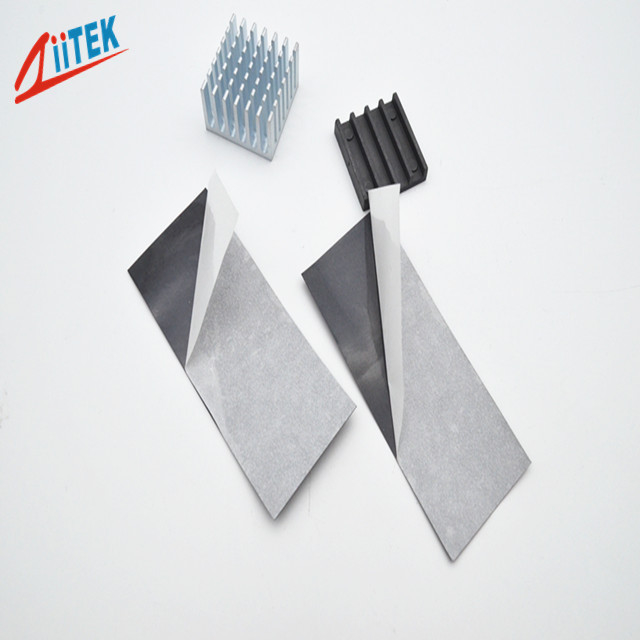

1500W/m-K Thermal Conductive Graphite Sheet For Mobile Phone 1

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
