Calculator Server Heat Dissipation Phase Change Material PCM
TIC™812G series is low melting point thermal interface material. At 50℃, TIC™800A-AL series begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance.

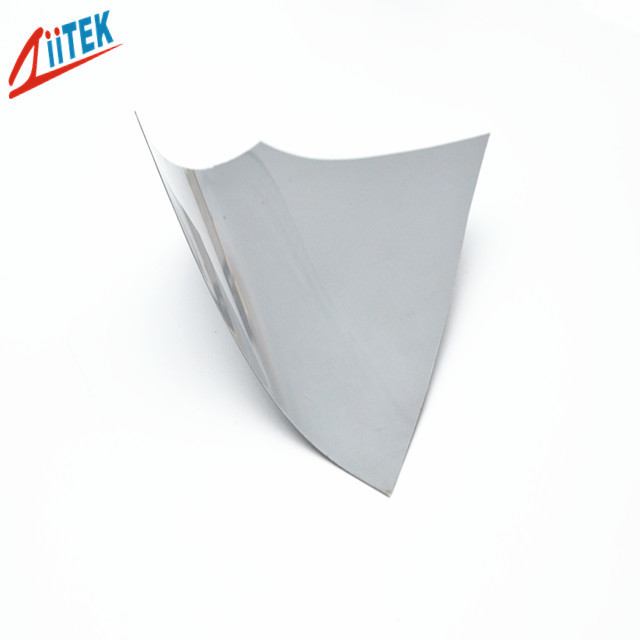

TIC™800A-Al series is a flexible solid at room temperature and freestanding without reinforcing components that reduce thermal performance.
TIC™800A-AL Series shows no thermal performance degradation after 1,000 hours@130℃,or after 500 cycles, from -25℃ to 125℃.The material softens and does not fully change state resulting in minimal migration (pump out)at operating temperatures.
TIIC800A-AL-data sheet.pdf
Applications Include:
> High Frequency Microprocessors
> Notebook and Desktop PCs
> Computer Serves
> Memory Modules
> Cache Chips
> IGBTs
Features:
> 0.014℃-in² /W thermal resistance
> Naturally tacky at room temperature, no adhesive required
> No heat sink preheating required
| Typical Properties of TICTM800A-AL Series |
| Product Name |
TICTM805A-AL |
TICTM808A-AL |
TICTM810A-AL |
TICTM820A-AL |
Test Method |
| Color |
Gray / Silve |
Gray / Silver |
Gray / Silver |
Gray / Silver |
Visual |
| Thickness |
0.005"
(0.126mm) |
0.008"
(0.203mm) |
0.010"
(0.254mm) |
0.020"
(0.508mm) |
|
| Thickness Tolerance |
±0.0008''
(±0.019mm) |
±0.0008''
(±0.019mm) |
±0.0012''
(±0.030mm) |
±0.0020''
(±0.050mm) |
|
| Density |
2.5g/cc |
Helium Pycnometer |
| Temperature range |
-25℃～125℃ |
|
| Phase Change Softening Temperature |
50℃~60℃ |
|
| Thermal Conductivity |
2.5 W/mK |
ASTM D5470 (modified) |
| Thermal Impedance @ 50 psi(345 KPa) |
0.063℃-in²/W |
0.08℃-in²/W |
0.097℃-in²/W |
0.157℃-in²/W |
ASTM D5470 (modified) |
| 0.40℃-cm²/W |
0.52℃-cm²/W |
0.63℃-cm²/W |
1.13℃-cm²/W |
Standard Thicknesses:
0.005"(0.127mm) 0.008"(0.203mm) 0.010"(0.254mm) 0.020"(0.508mm)
Consult the factory alternate thickness.
Standard Sizes:
10" x 16"(254mm x 406mm)

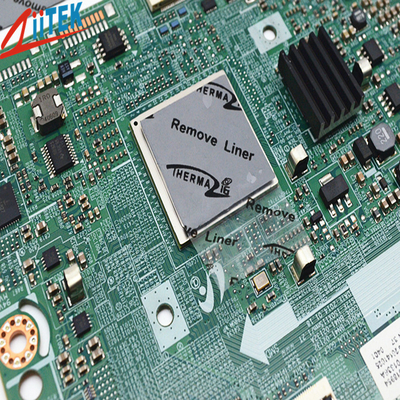

TIC™800 series are supplied with a white release paper and a bottom liner.
TIC800™ series is available in kiss cut an extended pull tab liner or individual die cut shapes.
Peressure Sensitive Adhesive:
Peressure Sensitive Adhesive is not applicable for TIC™800 series products.
Reinforcement:
No reinforcement is necessary.
Packaging Details & Lead time
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
