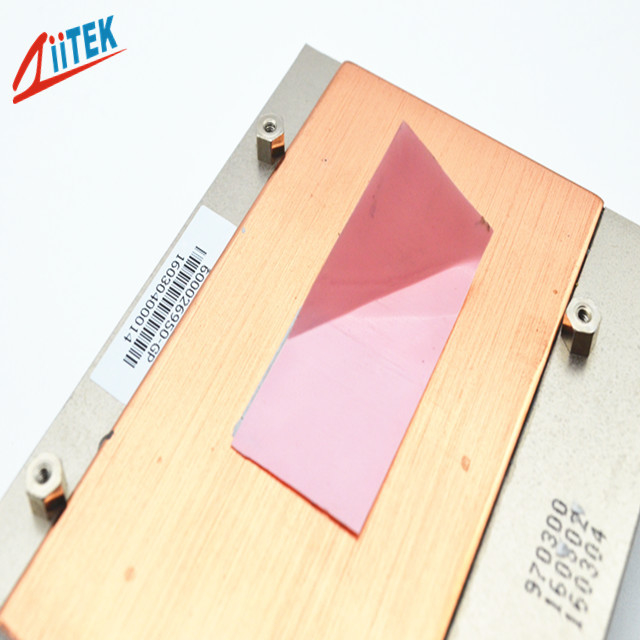

Wholesale Customized Phase Change Material Thermal Conductive Silicone Insulation Pad
TIC™800P series is low melting point thermal interface material.At 50℃, TIC™800P series begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance.
TIC™800P series is a flexible solid at room temperature and freestanding without reinforcing components that reduce thermal performance.
TIC™800P series shows no thermal performance degradation after 1,000 hours@130℃,or after 500cycles, from -25℃ to 125℃.The material softens and does not fully change state resulting in minimal migration (pump out)at operating temperatures.
TIC800P-Series-Datasheet.pdf
Features
> Highly compliant surfacecharacteristic with highthermal conductivity.
> High thermal conductive andHigh dielectric strength.
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures.
Applications
| High Frequency Microprocessors |
| Notebook |
| Computer Serves |
| Memory Modules |
| Cache Chips |
| IGBTs |
| COB Led |
| Desktop PCs |
| CPU |
| Microprocessors |
| Chipsets |
| Graphic Processing Chips |
| Custom application |
| Servers |
| Memory Modules |
| Power semiconductors |
| Power conversion modules |
| LED Power Supply |
| LED Controller |
| LED Lights |
| LED Ceilinglamp |
| Monitoring the Power Box |
| AD-DC Power Adapters |
| Typical Properties of TIC™800P series |
| Product Name |
TIC™805P |
TIC™806P |
TIC™810P |
Test Method |
| Color |
Pink |
Visual |
| Thickness |
0.005"/0.126mm |
0.008"/0.203mm |
0.010"/0.245mm |
****** |
| Thickness Tolerance |
±0.0008"/±0.0019mm |
±0.0008"/±0.0019mm |
±0.0012"/±0.030mm |
****** |
| Specific Gravity |
2.2 g/cc |
Helium Pycnometer |
| Temperature range |
-25 to 125℃ |
****** |
| Phase Change Softening Temperature |
50℃-60℃ |
****** |
| Thermal conductivity |
0.95W/mK |
ASTM D5470 |
| Thermal Impedance@50psi |
0.24℃-in²/W 0.15℃-cm²W |
0.053℃-in²/W 0.34℃-cm²W |
0.080℃-in²/W 0.52℃-cm²W |
ASTM D5470 |
Standard Thicknesses:
0.005"(0.127mm) ,0.008"(0.203mm), 0.010"(0.254mm)
Please contact us for confirming of the alternate thickness.
Standard Sizes :
10" x 16"(254mm x 406mm) , 16*400"(406mm*121.92M)
TIC™800P series are supplied with a white release paper and a bottom liner.

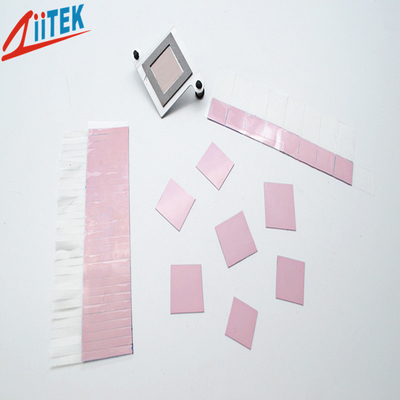

TIC™800P series is available in kiss cut an extended pull tab liner or individual die cut shapes.
Peressure Sensitive Adhesive:
Peressure Sensitive Adhesive is not applicable for TIC™800P series products.
Reinforcement:
No reinforcement is necessary.
Factory profile
Manufacturer of standard and custom thermally conductive pads for electric vehicles, autopilot systems, mobile phones, CPUs, motherboards, LCD-TV, telecom devices, and wireless hubs. Features vary depending upon model, including low thermal resistance, high thermal conductivity, and non-deforming. Silicone and non-silicone thermal pads are also offered. Available with operating temperature up to 180 degrees C. Serves the information, communications, telecommunications, consumer electronics, lighting, medical, and energy industries. RoHS and REACH compliant.
