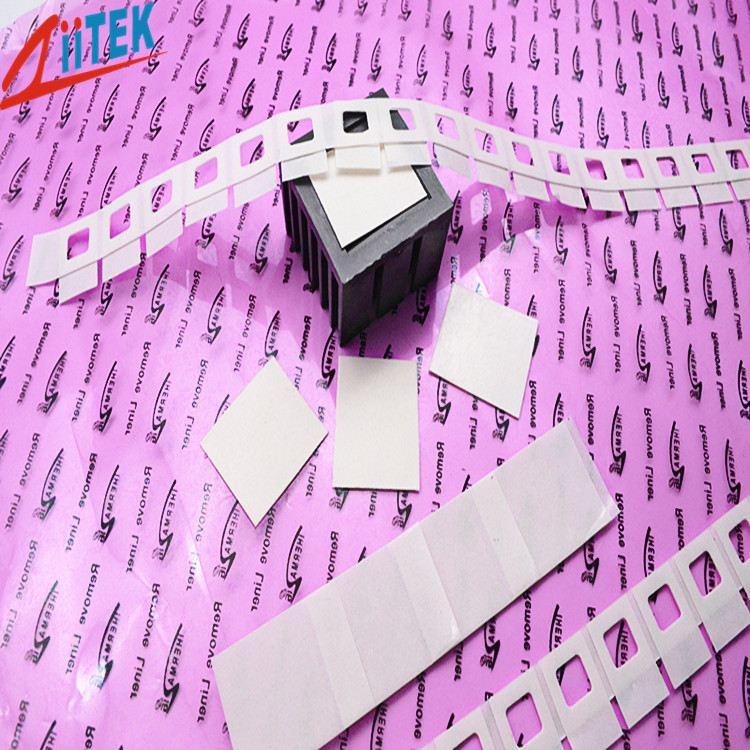

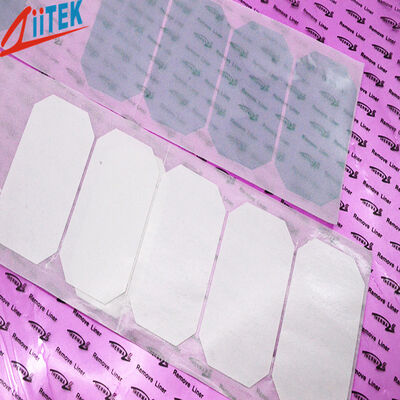

Thermal Insulation Led module Double Sided Fabric Thermally Conductive Adhesive Tape
The TIA®802 Series is filled with good thermal conductivity ceramic particles, featuring excellent thermal conductivity, strong adhesion and electrical insulation. It is suitable for bonding and fixing electronic components to heat sinks or housings, such as LED modules, power devices, communication equipment and other scenarios. The product is solvent-free, pollution-free, easy to construct, and can replace the traditional combination scheme of screw fixation and thermal conductive grease.
Features
> Thermal Conductivity: 0.8 W/mK
> High bonding strength
> Good thermal conductivity efficiency
> Easy to apply and can be die-cut into custom sizes
> Stable operation over a wide temperature range
Applications
> LED module
> Power device
> Consumer electronics
> Communication equipment
| Typical Properties of TIA®800 Series |
| Product Name |
TIA®802 |
TIA®804 |
TIA®806 |
TIA®808 |
TIA®810 |
TIA®812 |
TIA®815 |
Test Method |
| Color |
White |
Visual |
| Adhesive Type |
Acrylic Adhesive |
****** |
| Continuous Use Temp |
-40℃ to 125℃ |
****** |
| Thickness |
0.002" 0.05mm |
0.004" 0.10mm |
0.006" 0.15mm |
0.008" 0.20mm |
0.010" 0.25mm |
0.012" 0.30mm |
0.015" 0.38mm |
ASTM D374 |
| Voltage Breakdown |
≥600 |
≥1200 |
≥1800 |
≥2500 |
≥2700 |
≥3000 |
≥4000 |
ASTM D149 |
| Thermal Conductivity |
0.8 W/mK |
ASTM D5470 |
| 180° Peel Adhesion (gf/inch) Steel, Immediate |
≥ 1200 |
ASTM D3330 |
| 180° Peel Adhesionk (gf/inch) Steel, 24 hrs |
≥ 1400 |
ASTM D3330 |
| Holding Power (H/inch) @25℃ |
≥ 48 Hours |
ASTM D3654 |
| Holding Power (H/inch) @80℃ |
≥ 48 Hours |
ASTM D3654 |
Product Specifications
Standard Thickness:
0.002"(0.05 mm), 0.004"(0.10 mm), 0.006"(0.15 mm),
0.008"(0.20 mm), 0.010"(0.25 mm),0.012"(0.30mm), 0.015"(0.38mm)
Standard Size: 16" x 100" (406 mm x 30.48 M)
Reinforcing Carrier: TIA®800 Series rolls can be reinforced with glass fiber.

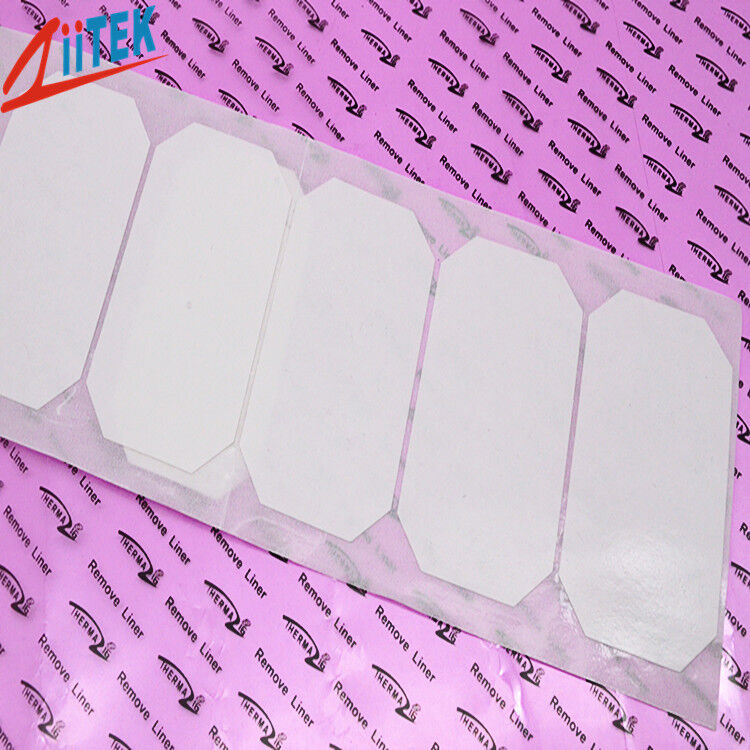

The TIA® series can be provided with die-cutting into vaious shapes, For different thicknesses or more information about
thermally conductive materials, please contact our company.
Company profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
