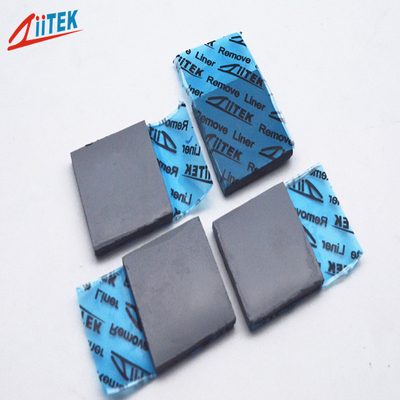

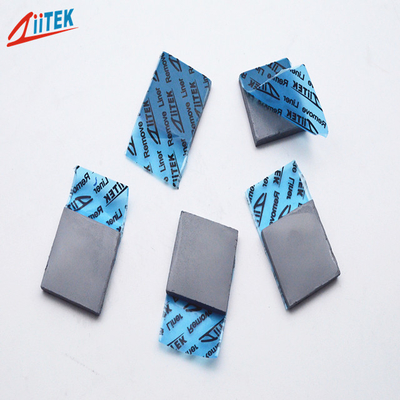

Thermal Interface Material Pads Thermal Silicone Pad For New Energy Vehicle Batteries PCB

Large Image : Thermal Interface Material Pads Thermal Silicone Pad For New Energy Vehicle Batteries PCB

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF760Q thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Name:	Thermal Interface Material Pads Thermal Silicone Pad For New Energy Vehicle Batteries PCB	Applications:	CPU PC GPU
Material:	Ceramic Filled Silicone Elastomer	Certification:	UL
Thermal Conductivity:	8.0W/m-K	Thickness:	2.0mmT
Keyword:	Thermal Interface Material
Highlight:	Silicone Thermal interface material pads , PCB Thermal interface material pads , PCB Thermal Silicone Pad

Thermal interface material pads Thermal silicone Pad for New Energy Vehicle Batteries PCB

Ziitek TIF780Q is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF780Q is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

Thermal Interface Material Pads Thermal Silicone Pad For New Energy Vehicle Batteries PCB 0

Features

> Good thermal conductive: 8.0 W/mK

> Thickness: 2.0 mmT

> hardness:60±10

> Colour: gray

> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance

Applications

> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply

Typical Properties of TIF780Q Series
Color	Blue	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	3.55 g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	2.0mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	60±10	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Thermal conductivity	8.0W/mk	ASTMD5470	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	≥5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.5MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	≥ 5.2X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating(no.E331100)	94-V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	8.0 W/m-K	GB-T32064	Visua l/ ASTM D751	ASTM D5470

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Thermal Interface Material Pads Thermal Silicone Pad For New Energy Vehicle Batteries PCB 1

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
