Heat Capacity: | 1 L/g-K | Thermal Conductivity: | 1.8 W/m-K |
---|---|---|---|
Hardness: | 18 Shore 00 | Density: | 2.5 G/cc |
Continuos Use Temp: | -40 To 160℃ | Flame Rating: | 94 V0 |
High Light: | silicone based Thermal Gap Pad,Thermal Gap Pad 3.5mmT,1.8 W/m-K Thermal Gap Pad |

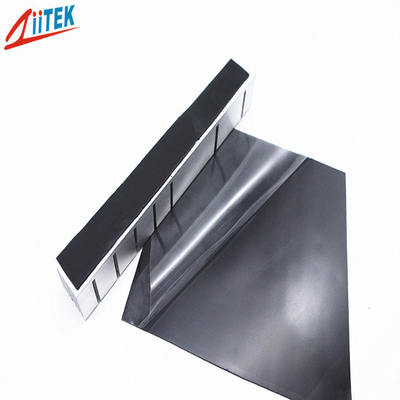

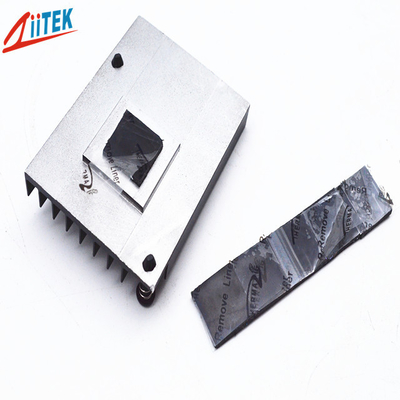

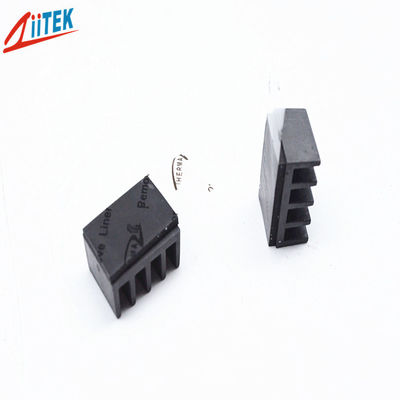

Thermal Gap Pad UL Recognized For Audio Video Components 3.5mmT 1.8 W/M-K
The TIF1140-18-01US is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
TIF100-18-01US-Specification-sheet.pdf
Features
> Good thermal conductive: 1.8 W/mK
>Thickness:3.5mmT
>hardness:18 shore00
>Colour: black
>RoHS compliant
>Outstanding thermal performance
>Fiberglass reinforced for puncture, shear and tear resistance
Applications
>Heat pipe thermal solutions
>Memory Modules
>LED Power Supply
>LED Controller
>LED Ceilinglamp
>RDRAM memory modules
>Micro heat pipe thermal solutions
Typical Properties of TIF1140-18-01US Series
|
||||
Color
|
black
|
Visual
|
Composite Thickness
|
Thermal Impedance@10psi
(℃-in²/W) |
Construction &
Compostion |
Ceramic filled silicone rubber
|
***
|
10mils / 0.254 mm
|
0.16
|
20mils / 0.508 mm
|
0.20
|
|||
Specific gravity |
2.5g/cc
|
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
40mils / 1.016 mm
|
0.36
|
|||
Thickness |
3.5mmT
|
***
|
50mils / 1.270 mm
|
0.42
|
60mils / 1.524 mm
|
0.48
|
|||
Hardness
|
18 Shore 00
|
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
80mils / 2.032 mm
|
0.63
|
|||
Outgassing(TML)
|
0.45%
|
ASTM E595
|
90mils / 2.286 mm
|
0.73
|
100mils / 2.540 mm
|
0.81
|
|||
Continuos Use Temp
|
-40 to 160℃
|
***
|
110mils / 2.794 mm
|
0.86
|
120mils / 3.048 mm
|
0.93
|
|||
Dielectric Breakdown Voltage
|
>5500 VAC
|
ASTM D149
|
130mils / 3.302mm
|
1.00
|
140mils /3.556 mm
|
1.08
|
|||
Dielectric Constant
|
4.5 MHz
|
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
160mils / 4.064 mm
|
1.20
|
|||
Volume Resistivity
|
1.0X1012
Ohm-cm |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
180mils / 4.572 mm
|
1.32
|
|||
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
200mils / 5.080 mm
|
1.52
|
|||
Thermal conductivity
|
1.8 W/m-K
|
ASTM D5470
|
Visua l/ ASTM D751
|
ASTM D5470
|
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
