Product Details:
Payment & Shipping Terms:
|
| Heat Capacity: | 1 L/g-K | Thermal Conductivity: | 3.0 W/m-K |
|---|---|---|---|
| Hardness: | 12 Shore 00 | Density: | 2.9 G/cc |
| Continuos Use Temp: | -40 To 160℃ | Flame Rating: | 94 V0 |
| High Light: | Handheld Portable Electronics thermal filler,thermal filler UL Recognized,Thermal Gap Filler 2.9 G/Cc |
||

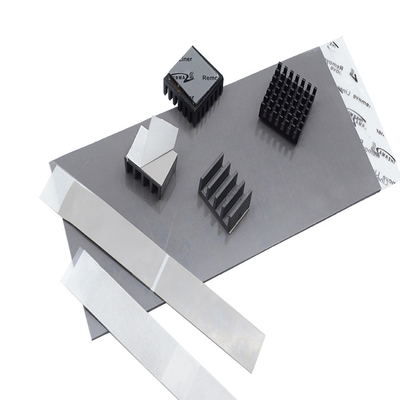

UL recognized popular thermal gap filler for Handheld portable electronics,3.0 W/m-K,2.9 g/cc
The TIF1160-30-11ES use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
TIF100-30-11ES-Datasheet-REV02.pdf
Features
> Good thermal conductive: 3.0 W/mK
>Thickness:4.0mmT
>hardness:12 shore00
>Colour: gray
>Easy release construction
>Electrically isolating
>High durability
Applications

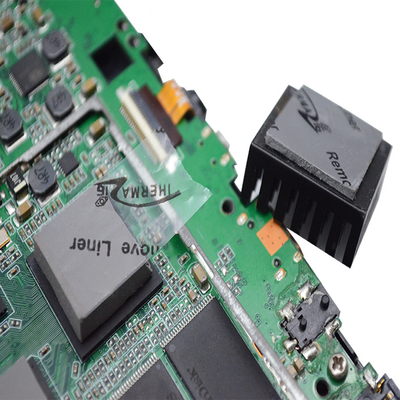

>Handheld portable electronics
>Semiconductor automated test equipment (ATE)
>CPU
>IT infrastructure
>GPS navigation and other portable devices
>CD-Rom, DVD-Rom cooling
|
Typical Properties of TIF1160-30-11ES Series
|
||||
|
Color
|
gray
|
Visual
|
Composite Thickness
|
Thermal Impedance@10psi
(℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
***
|
10mils / 0.254 mm
|
0.16
|
|
20mils / 0.508 mm
|
0.20
|
|||
|
Specific gravity |
2.9g/cc
|
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
|
40mils / 1.016 mm
|
0.36
|
|||
| Thickness |
4.0mmT
|
***
|
50mils / 1.270 mm
|
0.42
|
|
60mils / 1.524 mm
|
0.48
|
|||
|
Hardness
|
12 Shore 00
|
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
|
80mils / 2.032 mm
|
0.63
|
|||
|
Outgassing(TML)
|
0.35%
|
ASTM E595
|
90mils / 2.286 mm
|
0.73
|
|
100mils / 2.540 mm
|
0.81
|
|||
|
Continuos Use Temp
|
-40 to 160℃
|
***
|
110mils / 2.794 mm
|
0.86
|
|
120mils / 3.048 mm
|
0.93
|
|||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
ASTM D149
|
130mils / 3.302mm
|
1.00
|
|
140mils /3.556 mm
|
1.08
|
|||
|
Dielectric Constant
|
2.9 MHz
|
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
|
160mils / 4.064 mm
|
1.20
|
|||
|
Volume Resistivity
|
1.0X1012
Ohm-cm |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
|
180mils / 4.572 mm
|
1.32
|
|||
|
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
|
200mils / 5.080 mm
|
1.52
|
|||
|
Thermal conductivity
|
3.0 W/m-K
|
ASTM D5470
|
Visua l/ ASTM D751
|
ASTM D5470
|
Company Profile
With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)

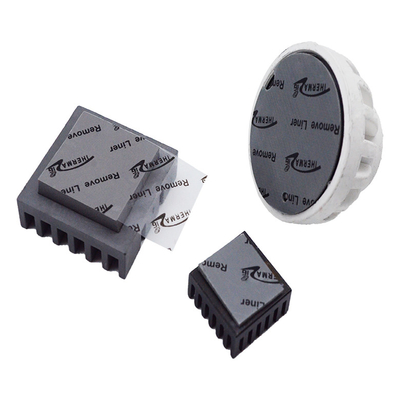

TIF™ series Individual die cut shapes can be supplied.
| Online-service : 12 hours , Inquiry reply within fastest. |
| Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8). |
| Well-trained & experienced staff are to answer all your inquiries in English of course. |
| Standard Export Carton Or Marked With Customer's Information Or Customized. |
| Provide free samples |
| After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof. |
| we will help you to deal with it and give you satisfactory solution. |
FAQ:
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
