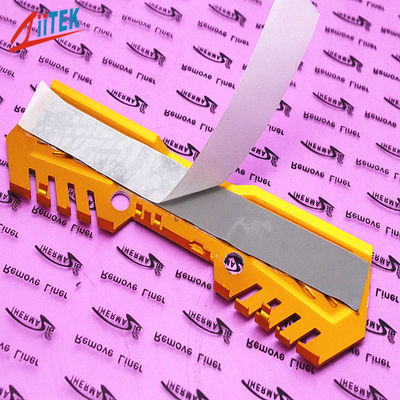

Factory Custom Size Thermal Pad 1.5W 1mm 2mm 3mm Thermal Conductive Cooling Silicone Thermal Pad For GPU CPU

Factory Custom Size Thermal Pad 1.5W 1mm 2mm 3mm Thermal Conductive Cooling Silicone Thermal Pad For GPU CPU
Factory Custom Size Thermal Pad 1.5W 1mm 2mm 3mm Thermal Conductive Cooling Silicone Thermal Pad For GPU CPU
video play

Large Image :  Factory Custom Size Thermal Pad 1.5W 1mm 2mm 3mm Thermal Conductive Cooling Silicone Thermal Pad For GPU CPU

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF1100-02F
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 days
Payment Terms: T/T
Supply Ability: 100000pcs/day
Detailed Product Description
Products Name: Factory Custom Size Thermal Pad 1.5W 1mm 2mm 3mm Thermal Conductive Cooling Silicone Thermal Pad For GPU CPU Thickness: 2.5mmT
Specific Gravity: 2.3g/cc Hardness: 45 Shore 00
Construction: Ceramic Filled Silicone Elastomer Keywords: Thermal Pad
Operating Temp: -40 To 160℃ Thermal Conductivity: 1.5W/m-K
Highlight:

Thermal Conductive Silicone Pad 2.5mmT

,

94 V0 Thermal Conductive Silicone Pad

,

55 shore 00 silicon thermal pad

Factory Custom Size Thermal Pad 1.5W 1mm 2mm 3mm Thermal Conductive Cooling Silicone Thermal Pad For GPU CPU



With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.


The TIF1100-02F Series thermally conductive interface materials are appliedto fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.



Factory Custom Size Thermal Pad 1.5W 1mm 2mm 3mm Thermal Conductive Cooling Silicone Thermal Pad For GPU CPU 0
Features:



> Available in varies thicknesses 1.5 W/mK
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance




Applications



> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices





Typical Properties of TIF1100-02F Series
Color

Gray

Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
****** 10mils / 0.254 mm

0.48

20mils / 0.508 mm

0.56

Specific Gravity

2.3 g/cc

ASTM D297

30mils / 0.762 mm

0.71

40mils / 1.016 mm

0.80

Heat Capacity

1 l/g-K

ASTM C351

50mils / 1.270 mm

0.91

60mils / 1.524 mm

0.94

Hardness4
45 Shore 00 ASTM 2240

70mils / 1.778 mm

1.05

80mils / 2.032 mm

1.15

Tensile Strength


40 psi

ASTM D412

90mils / 2.286 mm

1.25

100mils / 2.540 mm

1.34

Continuos Use Temp
-40 to 160℃

******

110mils / 2.794 mm

1.43

120mils / 3.048 mm

1.52

Dielectric Breakdown Voltage
>5500 VAC ASTM D149

130mils / 3.302mm

1.63

140mils / 3.556 mm

1.71

Dielectric Constant
4.5 MHz ASTM D150

150mils / 3.810 mm

1.81

160mils / 4.064 mm

1.89
Volume Resistivity
1.0X10¹² Ohm-meter ASTM D257

170mils / 4.318 mm

1.98

180mils / 4.572 mm

2.07

Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

2.14

200mils / 5.080 mm

2.22

Thermal conductivity
1.5 W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470



Standard Thicknesses:
0.010" (0.25mm) ,0.020" (0.51mm),0.030" (0.76mm) 0.040" (1.02mm),0.050" (1.27mm),
0.060" (1.52mm),0.070" (1.78mm),0.080" (2.03mm),0.090" (2.29mm),0.100" (2.54mm),
0.110" (2.79mm),0.120" (3.05mm),0.130" (3.30mm),0.140" (3.56mm),0.150" (3.81mm),
0.160" (4.06mm),0.170" (4.32mm),0.180" (4.57mm),0.190" (4.83mm),0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm)   16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.

Factory Custom Size Thermal Pad 1.5W 1mm 2mm 3mm Thermal Conductive Cooling Silicone Thermal Pad For GPU CPU 1

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :QTY 5000pcs: 3-5 working days

Est. Time(days):More than 5000PCS: Please contact us to negotiation
