TIF045-11 is a soft silicone gel-based gap filler pad,formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, TIF045-11 has a higher viscosity, which effectively prevents filer separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment. Typical applications include flip-chip microprocessors, PPGAs, micro BGA packages, BGA packages, DSP chips, circular silicon chips, LED lighting. and other high-power electronic components.
Feature
>Thermal conductivity: 4.5 W/mK
>Soft, very low compression
>Low thermal impedance
>Operate automatically
>Proven long-term reliability
Application
>Heat-sink & frame
>LED backlight module, LED lighting
>High speed hardware driver
>Micro heat pipe
>Vihicel enginee controller
>Telecom industry
>Semiconductor automatic laboratory equipment
| TIF®045-11 Typical Properties |
| Property |
Value |
Test method |
| Color |
Gray |
Visual |
| Construction & Composition |
Ceramic filled silicon material |
- |
| Flow Rate(g/min) |
40 |
Ziitek Test Method (30 cc syringe/ 2.5 mm orifice/ 90 psi) |
| Density(g/cc) |
3.20g/c |
ASTM D297 |
| Thermal conductivity |
4.5W/mK |
ASTM D5470 |
| Thermal Impedance @10psi (℃.in²w) |
0.077 |
ASTM D5470 |
| Thermal Impedance @50psi (℃.in²w) |
0.068 |
ASTM D5470 |
| Recommended Operating Temp |
-45 ~200°C |
Ziitek Test Method |
| Dielectric Strength(V/mm) |
≥4000 |
ASTM D149 |
| Bond Line Thickness(mm) |
0.2 |
Ziitek Test Mothod |
| Flame Rating |
V-0 |
UL 94 |
| Shelf Life |
12 months |
- |
Product Specification

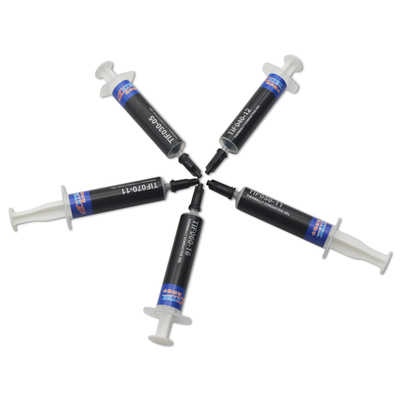

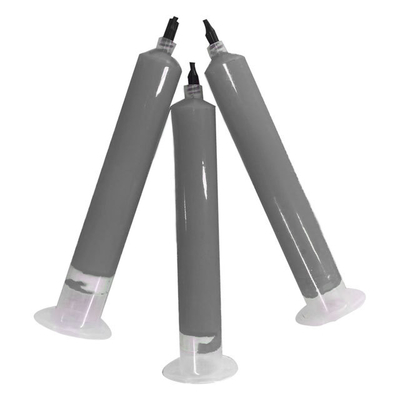

30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box
Custom packaging available for automation use. Please contact us for confirming.
