High Thermally Conductive Filler Pads TIF840QE LED Light Application 1mm Thickness

High Thermally Conductive Filler Pads TIF840QE LED Light Application 1mm Thickness

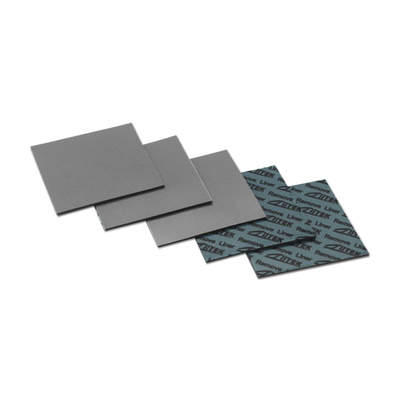

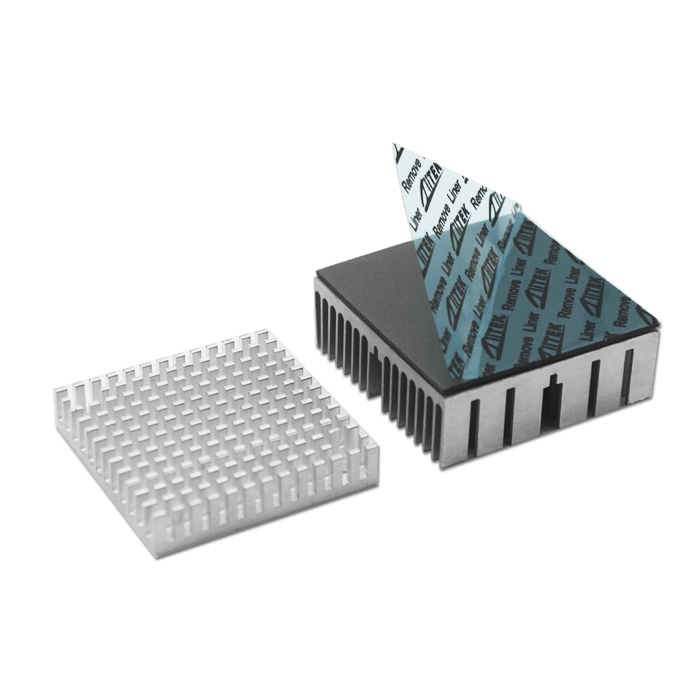

The TIF840QE  thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:

> Good thermal conductive: 13.0W/mK
> Naturally tacky needing no further adhesive coating
> High compliance adapts to various pressure application environments
> Available in different thickness options

> Thickness: 1mmT

Applications:

> Heat dissipation structure for radiators
> Telecommunication equipment
> Automotive electronics
> Battery packs for electric vehicles
> LED drivers and lamps

> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board



Product Specifications
Standard Thickness: 0.02 to 0.20 (0.50 to 5.0mm) with increments of 0.01 (0.25mm).
Standard Size: 16" X 16" (406mm X 406mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options:NS1 (Non-adhesive treatment),DC1(Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
Notes:FG(Fiberglas)provides enhanced strength, suitable for materials with thicknesses of 0.01 to 0.02 inch (0.25 to 0.5mm).
TheTIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
