| Application: | LED Lit Lighting | Color: | Violet |
|---|---|---|---|
| Thickness: | 3 MmT | Feature: | Customized Silicone Rubber Thermal Insulation Pad |
| Heat Conducctivity: | 4.7W/mK | ||
| High Light: | high temperature phase change materials,thermal conductivity silicone,Rubber Thermal Insulation Pad |
||

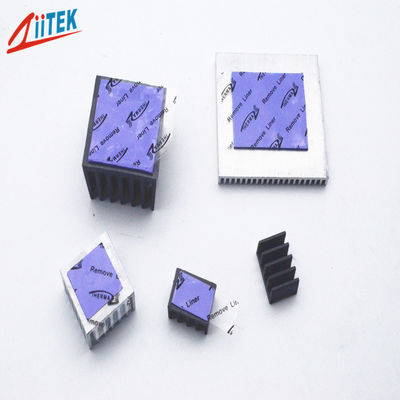

Customized Silicone Rubber Thermal Insulation Pad For LED Lit Lighting
The TIF6120 is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling
Features:
> Thcikness: 3mmT
> Perfect thermal conducting
> Good thermal conductive: 4.7 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
Applications:
> LED TV and LED-lit lamps
> Wireless routers
> Cooling components to the chassis of frame
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment
> RDRAM memory modules
> Automotive engine control units
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> Micro heat pipe thermal solutions
|
Typical Properties of TIF™6120
|
||||
|
Color
|
violet |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone elastomer
|
*** | 10mils / 0.254 mm | 0.21 |
| 20mils / 0.508 mm | 0.27 | |||
|
Specific Gravity
|
2.88 g /cc | ASTM D297 |
30mils / 0.762 mm |
0.39 |
|
40mils / 1.016 mm |
0.43 | |||
|
Heat Capacity
|
1 l /g-K | ASTM C351 |
50mils / 1.270 mm |
0.50 |
|
60mils / 1.524 mm |
0.58 |
|||
|
Hardness
|
45 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
0.65 |
|
80mils / 2.032 mm |
0.76 | |||
|
Tensile Strength
|
40 psi |
ASTM D412 |
90mils / 2.286 mm |
0.85 |
|
100mils / 2.540 mm |
0.94 | |||
|
Continuos Use Temp
|
-40 to 160℃ |
*** |
110mils / 2.794 mm |
1.00 |
|
120mils / 3.048 mm |
1.07 | |||
|
Dielectric Breakdown Voltage
|
>5500 VAC | ASTM D149 |
130mils / 3.302mm |
1.16 |
|
140mils / 3.556 mm |
1.25 | |||
|
Dielectric Constant
|
7.5 MHz | ASTM D150 |
150mils / 3.810 mm |
1.31 |
|
160mils / 4.064 mm |
1.38 | |||
|
Volume Resistivity
|
8.0X1013 Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.43 |
|
180mils / 4.572 mm |
1.50 | |||
|
Fire rating
|
94 V-0 |
equivalent UL |
190mils / 4.826 mm |
1.60 |
|
200mils / 5.080 mm |
1.72 | |||
|
Thermal conductivity
|
4.7 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
