Application: | LED Module | Color: | Gray |
---|---|---|---|
Thickness: | 1.5mmT | Hardness: | 45 Shore 00 |
Heat Conducctivity: | 5W/mK | ||
Highlight: | thermally conductive filler,thermal conductivity silicone,Grey Thermal Gap Filler |

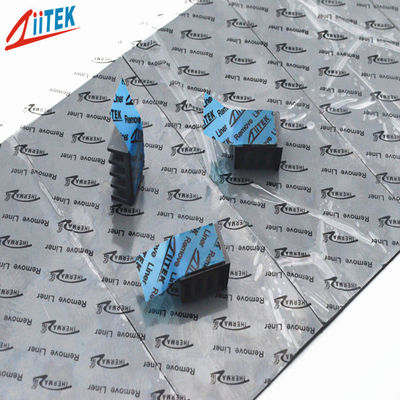

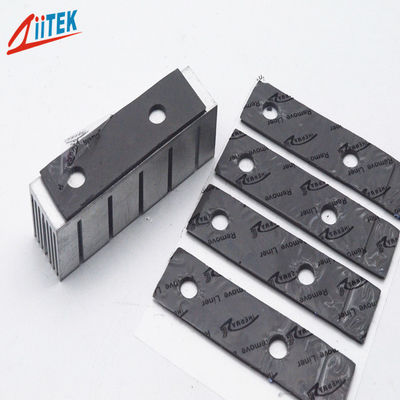

Grey 1.5mm T Thermal Gap Filler , LED Module Heat Sinking Thermal Insulators Materials
The TIF860 is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features:
> Perfect heat sinking
> Good thermal conductive: 5 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Thcikness: 3mmT
Applications:
> LED TV and LED-lit lamps
> Automotive engine control units
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> Micro heat pipe thermal solutions
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment
> RDRAM memory modules
> Cooling components to the chassis of frame
Typical Properties of TIF™860
|
||||
Color
|
gray |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
Construction &
Compostion |
Ceramic filled silicone elastomer
|
*** | 10mils / 0.254 mm | 0.21 |
20mils / 0.508 mm | 0.27 | |||
Specific Gravity
|
2.69 g /cc | ASTM D297 |
30mils / 0.762 mm |
0.39 |
40mils / 1.016 mm |
0.43 | |||
Heat Capacity
|
1 l /g-K | ASTM C351 |
50mils / 1.270 mm |
0.50 |
60mils / 1.524 mm |
0.58 |
|||
Hardness
|
45 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
0.65 |
80mils / 2.032 mm |
0.76 | |||
Tensile Strength
|
40 psi |
ASTM D412 |
90mils / 2.286 mm |
0.85 |
100mils / 2.540 mm |
0.94 | |||
Continuos Use Temp
|
-40 to 160℃ |
*** |
110mils / 2.794 mm |
1.00 |
120mils / 3.048 mm |
1.07 | |||
Dielectric Breakdown Voltage
|
>1500~>5500 VAC | ASTM D149 |
130mils / 3.302mm |
1.16 |
140mils / 3.556 mm |
1.25 | |||
Dielectric Constant
|
5.5 MHz | ASTM D150 |
150mils / 3.810 mm |
1.31 |
160mils / 4.064 mm |
1.38 | |||
Volume Resistivity
|
6.3X1012Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.43 |
180mils / 4.572 mm |
1.50 | |||
Fire rating
|
94 V-0 |
equivalent UL |
190mils / 4.826 mm |
1.60 |
200mils / 5.080 mm |
1.72 | |||
Thermal conductivity
|
5 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
