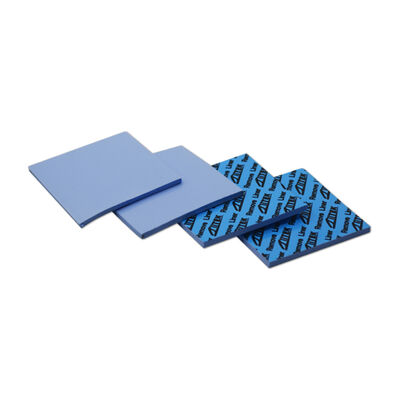

Easy Assembly 3.0W Cost-Effective General Economic Thermal Gap Filling Gasket For Electron Components

Large Image : Easy Assembly 3.0W Cost-Effective General Economic Thermal Gap Filling Gasket For Electron Components

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF100-30-05US

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Products Name:	Easy Assembly 3.0W Cost-Effective General Economic Thermal Gap Filling Gasket For Electron Components	Color:	Blue
Thermal Conductivity:	3.0W/mK	Hardness:	50/20 Shore 00
Specific Gravity:	3.0 G/cm³	Dielectric Constant @1MHz:	7.0
Recommended Operating Temperature (°C):	-40 ~ 200℃	Keywords:	Thermal Gap Filling
Application:	Electron Components
Highlight:	thermal conductive gap filler 7.5 MHz , thermal conductive gap filler 2mmT , 2mmT thermal gap filler pad

Easy Assembly 3.0W Cost-Effective General Economic Thermal Gap Filling Gasket For Electron

Components

Products description

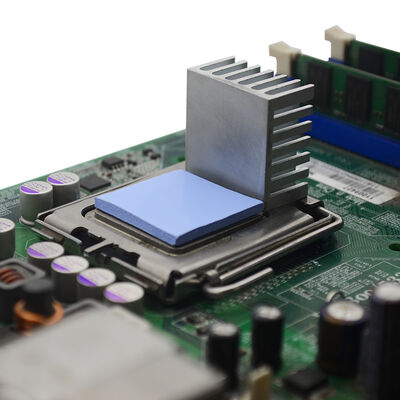

The TIF100-30-05US Series thermal pad is a very cost-effective general economic thermal gap filling gasket, soft with its own micro-stick, easy assembly. Under low compressing force to show good thermal conductivity and electrical insulation properties. Bedding on the gap between the heat device and the heat sink or the machine shell to extrude air to reach the full contact forming a continuous thermal conduction. Using heat sink or machine shell as a cooling device can effectively increase the cooling area to achieve a good cooling purposes.

Features:

> RoHS compliant 1.5 W/mK
> UL recognized
> Fiberglass reinforced for puncture, shear and tear resistance3 W/mK
> Easy release construction
> Electrically isolating
> High durability

Applications:

> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers

> CPU
> Display card
> Mainboard/mother board

Typical Properties of TIF^®100-30-05US Series
Property	Value		Test method
Color	Blue		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	50 Shore 00	20 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	7.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	3.0 W/m-K		ASTM D5470
	3.0 W/m-K		ISO22007

Product Specification

Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010"(0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Company profile

Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

Factory Size:8000~10,000 square meters

Factory Country/Region:No.12, Xiju Road, Hengli Township, Dongguan City, Guangdong Province, P.R.China

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
