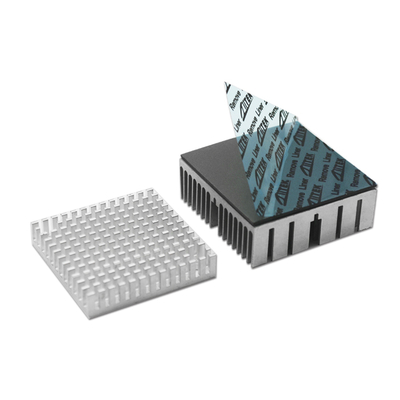

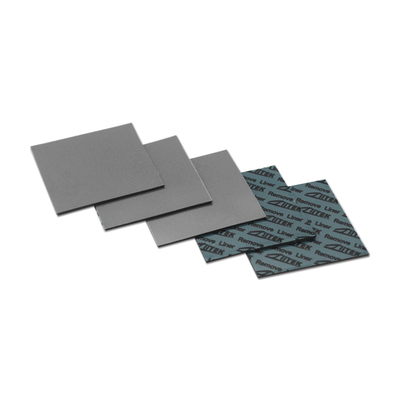

Thickness 1mm Easily Attached Thermal Conductive Pad With Natural Adhesive For Automotive Engine Control Units

Thickness 1mm Easily Attached Thermal Conductive Pad With Natural Adhesive For Automotive Engine Control Units
Thickness 1mm Easily Attached Thermal Conductive Pad With Natural Adhesive For Automotive Engine Control Units
video play

Large Image :  Thickness 1mm Easily Attached Thermal Conductive Pad With Natural Adhesive For Automotive Engine Control Units

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF140-18-11E
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Contact Now
Detailed Product Description
Product Name: Thickness 1mm Easily Attached Thermal Conductive Pad With Natural Adhesive For Automotive Engine Control Units Color: Gray
Thickness: 1 MmT Dielectric Breakdown Voltage: >5500 VAC
Dielectric Constant: 3.7 MHz Construction & Compostion: Ceramic Filled Silicone Elastomer
Keywords: Thermal Conductive Pad Application: Automotive Engine Control Units
Highlight:

thermally conductive pad

,

thermal conductive material

,

1 mm thick thermal conductive pad

Thickness 1mm Easily Attached Thermal Conductive Pad With Natural Adhesive For Automotive Engine Control Units



The TIF®140-18-11E use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.


Features:


> Good thermal conductive:1.8W/mK

> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness


Applications:


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)



Typical Properties of TIF®100-18-11E Series
Color Gray Visual
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness 0.020"(0.5mm)~0.200"(5.0MM) ASTM D374
Specific Gravity 2.3g/cc ASTM D792
Hardness 35 Shore 00 ASTM 2240
Operating Temp -40 to 160℃ ******
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant @1MHz 3.7 MHz ASTM D150
Volume Resistivity 4.0x1013 Ohm-meter ASTM D257
Flame rating 94 -V0 UL E331100
Thermal conductivity 1.8 W/m-K  ASTM D5470



Products specificatrion



Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm) ,Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming.



Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF series sheets type can add with fiberglass reinforced.
