| Thickness: | 1 MmT | Thermal Conductivity: | 3 W/m-K |
|---|---|---|---|
| Hardness: | 45 Shore 00 | Specific Gravity: | 2.32 G/cc |
| Dielectric Constant: | 5.5 MHz | Fire Rating: | 94-V0 |
| High Light: | thermal conductive material,thermally conductive pad,3W white Recognized Pad |
||

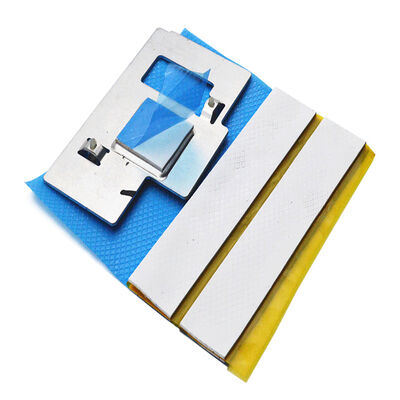

High performance 3W V-0 Recognized Pad For Car Video Recorder DVR Gray 45shore00 Thermally Conductive Pad

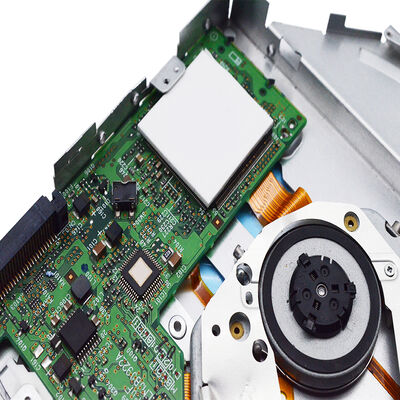

The TIF140-30-06S Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
Features:
> Good thermal conductive: 3 W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
Applications:
| TV and LED-lit lamps |
| RDRAM memory modules |
| Micro heat pipe |
| Automotive engine control units |
| Telecommunication hardware |
| Cooling components to chassis frame or other mating components |
| Home and small office network equipment |
| Handheld portable electronics |
| Plasma supply panels |
| Semiconductor automated test equipment (ATE) |
| Heat pipe thermal solutions |
| Memory Modules |
| Mass storage devices |
| Automotive electronics |
| Radios |
|
Typical Properties of TIF140-30-06S Series
|
||||
|
Color
|
white |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** | 10mils / 0.254 mm |
0.48 |
| 20mils / 0.508 mm |
0.56 |
|||
|
Specific Gravity
|
2.32 g/cc |
ASTM D297 |
30mils / 0.762 mm |
0.71 |
|
40mils / 1.016 mm |
0.80 |
|||
|
Heat Capacity
|
1 l/g-K |
ASTM C351 |
50mils / 1.270 mm |
0.91 |
|
60mils / 1.524 mm |
0.94 |
|||
|
Hardness
|
45 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
1.05 |
|
80mils / 2.032 mm |
1.15 |
|||
|
Tensile Strength
|
40 psi |
ASTM D412 |
90mils / 2.286 mm |
1.25 |
|
100mils / 2.540 mm |
1.34 |
|||
|
Continuos Use Temp
|
-50 to 200℃ |
*** |
110mils / 2.794 mm |
1.43 |
|
120mils / 3.048 mm |
1.52 |
|||
|
Dielectric Breakdown Voltage
|
>10000 VAC | ASTM D149 |
130mils / 3.302mm |
1.63 |
|
140mils / 3.556 mm |
1.71 |
|||
|
Dielectric Constant
|
5.5 MHz | ASTM D150 |
150mils / 3.810 mm |
1.81 |
|
160mils / 4.064 mm |
1.89 | |||
|
Volume Resistivity
|
7.8X10" Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.98 |
|
180mils / 4.572 mm |
2.07 |
|||
|
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
2.14 |
|
200mils / 5.080 mm |
2.22 |
|||
|
Thermal conductivity
|
3 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
