Product Details:
Payment & Shipping Terms:
|
| Volume Resistivity: | 8X1012Ohm-meter | Specific Gravity: | 2.85 G/cc |
|---|---|---|---|
| Heat Capacity: | 1 L /g-K | Color: | Blue |
| Continuos Use Temp: | -50 To 200℃ | Hardness: | 55 Shore 00 |
| High Light: | thermally conductive filler,thermal conductivity silicone,Thermal Gap Filler Naturally tacky |
||

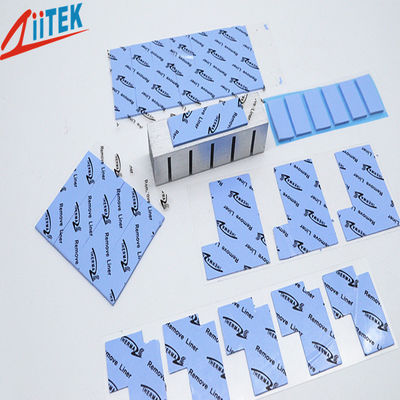

TIF130-20-05S natually tacky Thermal Gap Filler 2.0 W/mK blue ultra soft silicone gap pad -50 to 200℃
The TIF130-20-05S is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF130-20-05S is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Features:
> Good thermal conductive: 2 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Outstanding thermal performance
> Available in varies thickness
Applications:
| Cooling components to the chassis of frame |
| High speed mass storage drives |
| Heat Sinking Housing at LED-lit BLU in LCD |
| LED TV and LED-lit lamps |
| RDRAM memory modules |
| Micro heat pipe |
| Automotive engine control units |
| Telecommunication hardware |
| Cooling components to chassis frame or other mating components |
| Home and small office network equipment |
| Handheld portable electronics |
| Plasma supply panels |
| Semiconductor automated test equipment (ATE) |
| Heat pipe thermal solutions |
| Memory Modules |
| Mass storage devices |
| Automotive electronics |
|
Typical Properties of TIF™ 130-20-05S Series
|
||||
|
Color
|
Blue |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** | 10mils / 0.254 mm | 0.21 |
| 20mils / 0.508 mm | 0.27 | |||
|
Specific Gravity
|
2.80 g /cc | ASTM D297 |
30mils / 0.762 mm |
0.39 |
|
40mils / 1.016 mm |
0.43 | |||
|
Heat Capacity
|
1 l /g-K | ASTM C351 |
50mils / 1.270 mm |
0.50 |
|
60mils / 1.524 mm |
0.58 |
|||
|
Hardness
|
55 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
0.65 |
|
80mils / 2.032 mm |
0.76 | |||
|
Tensile Strength
|
55 ps |
ASTM D412 |
90mils / 2.286 mm |
0.85 |
|
100mils / 2.540 mm |
0.94 | |||
|
Continuos Use Temp
|
-50 to 200℃ |
*** |
110mils / 2.794 mm |
1.00 |
|
120mils / 3.048 mm |
1.07 | |||
|
Dielectric Breakdown Voltage
|
>10000 VAC | ASTM D149 |
130mils / 3.302mm |
1.16 |
|
140mils / 3.556 mm |
1.25 | |||
|
Dielectric Constant
|
7.5 MHz | ASTM D150 |
150mils / 3.810 mm |
1.31 |
|
160mils / 4.064 mm |
1.38 | |||
|
Volume Resistivity
|
8X1012Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.43 |
|
180mils / 4.572 mm |
1.50 | |||
|
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
1.60 |
|
200mils / 5.080 mm |
1.72 | |||
|
Thermal conductivity
|
2.0 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
FACTORY INFORMATION:
Factory Size
5,000-10,000 square meters
Factory Country/Region
Building B8, Industry District Ⅱ, Xicheng, Hengli Township, Dongguan City, Guangdong Province, P.R.China
Annual Output Value
US$1 Million - US$2.5 Million
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
