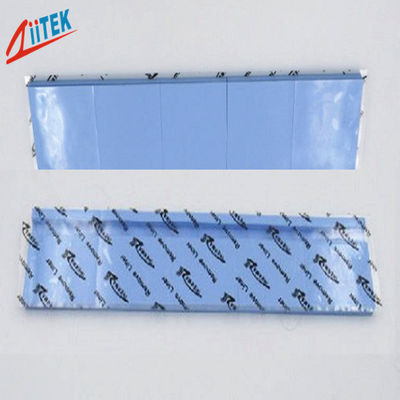

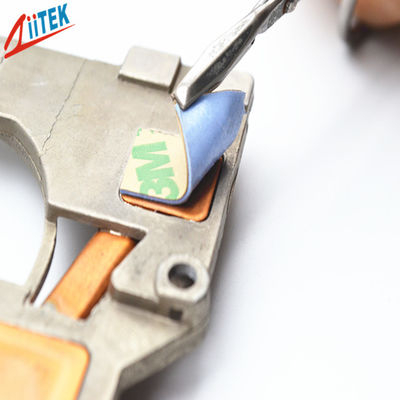

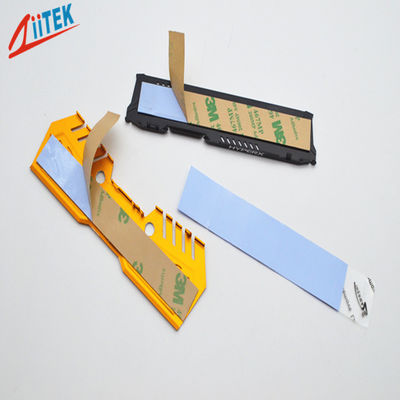

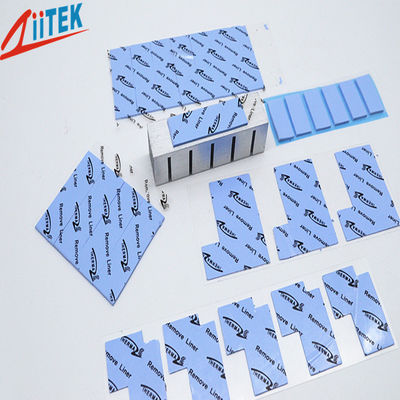

Thermal Gap Filler Silicone Gap Pad With Electrical Isolation And Naturally Tacky Surface For Thermal Management

Thermal Gap Filler Silicone Gap Pad With Electrical Isolation And Naturally Tacky Surface For Thermal Management
Thermal Gap Filler Silicone Gap Pad With Electrical Isolation And Naturally Tacky Surface For Thermal Management
Thermal Gap Filler Silicone Gap Pad With Electrical Isolation And Naturally Tacky Surface For Thermal Management Thermal Gap Filler Silicone Gap Pad With Electrical Isolation And Naturally Tacky Surface For Thermal Management Thermal Gap Filler Silicone Gap Pad With Electrical Isolation And Naturally Tacky Surface For Thermal Management Thermal Gap Filler Silicone Gap Pad With Electrical Isolation And Naturally Tacky Surface For Thermal Management Thermal Gap Filler Silicone Gap Pad With Electrical Isolation And Naturally Tacky Surface For Thermal Management

Large Image :  Thermal Gap Filler Silicone Gap Pad With Electrical Isolation And Naturally Tacky Surface For Thermal Management

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF130-20-05S
Document: TIF100-20-05S_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Payment Terms: T/T
Supply Ability: 10000/day
Contact Now

Thermal Gap Filler Silicone Gap Pad With Electrical Isolation And Naturally Tacky Surface For Thermal Management

Description
Products Name: Thermal Gap Filler Silicone Gap Pad With Electrical Isolation And Naturally Tacky Surface For Thermal Management Thermal Conductivity: 2.0W/mK
Density: 2.65 G/cm³ Keywords: Silicone Gap Pad
Color: Blue Recommended Operating Temperature (℃): -40 To 200℃
Hardness: 65/45 Shore 00 Application: For Thermal Management
Highlight:

thermally conductive filler

,

thermal conductivity silicone

,

Thermal Gap Filler Naturally tacky

Thermal Gap Filler Silicone Gap Pad With Electrical Isolation And Naturally Tacky Surface For Thermal Management

The TIF®130-20-05S is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF®130-20-05S is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.


Features:


>  Good thermal conductive: 2 W/mK
>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Outstanding thermal performance
>  Available in varies thickness


Applications:


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe
> Automotive engine control units
> Telecommunication hardware
> Cooling components to chassis frame or other mating components
> Home and small office network equipment
> Handheld portable electronics
> Plasma supply panels
> Semiconductor automated test equipment (ATE)
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics


Typical Properties of TIF®100-20-05S Series
Property Value Test method
Color Blue Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.65 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
0.25~0.50 0.75~5.00
Hardness(Shore 00) 65 45 ASTM 2240
Recommended Operating Temperature (℃) -40 to 200 ***
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant @1Mhz 4.7 ASTM D150
Volume Resistivity(Ohm-cm) ＞1.0X1012  ASTM D257
Thermal Conductivity (W/m-K) 2.0 ASTM D5470
2.0 ISO22007
Fire rating V-0 UL 94 (E331100)



Product Specifications


Standard Thickness:0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mmX406 mm)


Component Codes:


Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.


Packaging Details & Lead time


The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized


Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Thermal Gap Filler Silicone Gap Pad With Electrical Isolation And Naturally Tacky Surface For Thermal Management 0
