Acrylic Adhesive Double Sided Heat Conductive Tape For PC

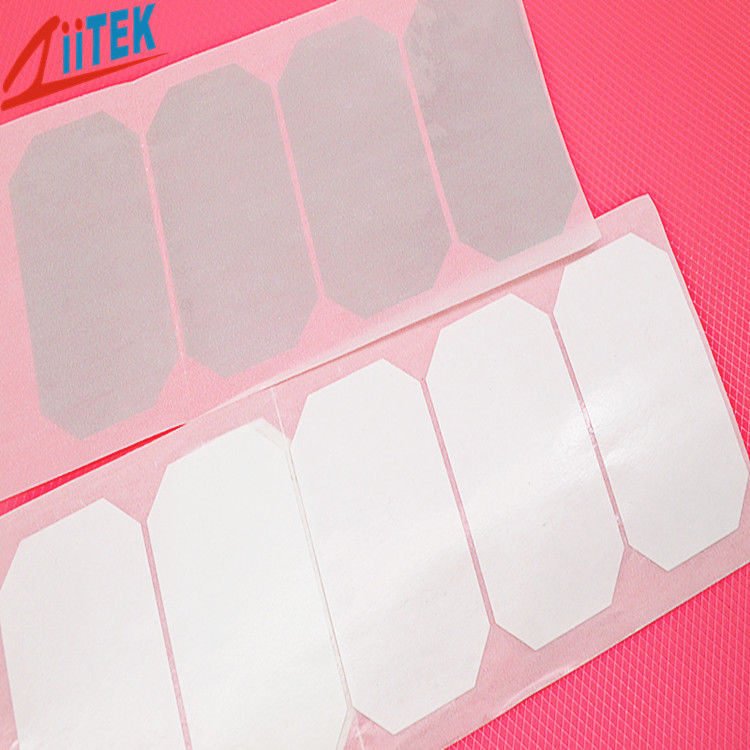

Large Image : Acrylic Adhesive Double Sided Heat Conductive Tape For PC

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIA800 Series

Payment & Shipping Terms:

Minimum Order Quantity:	10SQM
Packaging Details:	10RL/bag
Delivery Time:	2-3Work day
Supply Ability:	1000SQM/Day

Contact Now

Detailed Product Description

Products Name:	Acrylic Adhesive Double Sided Heat Conductive Tape For PC	Color:	White
Continuous Use Temp:	-45℃ To 120℃	Construction &Compostion:	Acrylic Adhesive
180.Peel Adhesion:	1200 G/inch2	Thermal Conductivity:	0.8 W/mK
Holding Power(80℃/Hours）:	＞48 Hours	Keywords:	Acrylic Adhesive Tape
Highlight:	adhesive foam tape , acrylic adhesive tape , Thermal Adhesive Tape 50 Shore A

Acrylic Adhesive Double Sided Heat Conductive Tape For PC

The TIA™800 Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.

TIA800 Series Datasheet-(E)-REV01.pdf

Features
> Thermal Conductivity: 0.8 W/mK
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive

Applications
> Mount heat sink onto BGA graphic processor or drive processor.

> Mount heat spreader onto powerconverter PCB or onto motor control.

> Can be used instead of heat cureadhesive,
> screwmounting or clip mounting.

> LED Flesible strip,LED bar,LED Panel Light etc.

Typical Properties of TIA™800 Series
Product Name	TIA^TM802	TIA^TM804	TIA^TM806	TIA^TM808	TIA^TM810	TIA^TM812	TIA^TM815	Test Method
Color	White							Visual
Adhesive Type	Acrylic Adhesive							******
Backing Type	N/A							******
Continuous Use Temp	-45℃ to 120℃							******
Thickness	0.019" 0.05mm	0.004" 0.101mm	0.006" 0.152mm	0.008" 0.203mm	0.010" 0.254mm	0.012" 0.304mm	0.015" 0.381mm	ASTM D374
Voltage Breakdown	> 600Vac	> 1200Vac	> 1800Vac	> 2500 Vac	> 2700 Vac	> 3000 Vac	> 4000 Vac	ASTM D149
Thermal Conductivity	0.9 W/mK							ASTM D5470
180° Peel Adhesion	>1200 g/inch (Steel Immediate)							PSTC-1
180° Peel Adhesion	> 1200 kg/inch(Steel after 24 hrs)							PSTC-1
Holding Power 25℃/Hours	> 48 Hours							PSTC-7
Holding Power 80℃/Hours	> 48 Hours							PSTC-7

Standard Thicknesses:
0.0019"(0.05 mm)
0.004"(0.101mm)

0.006"(0.152mm)
0.008(0.203mm)
0.010"(0.254mm)
0.012"(0.304mm)

0.015"(0.381mm)
Consult the factory alternate thickness.

Standard Sizes:
16" x 100'(406mm x 30.48M) lndividual die cut shapes can be supplied

Reinforcement:
TIA™800 series rolls type can add with fiberglass reinforced.
