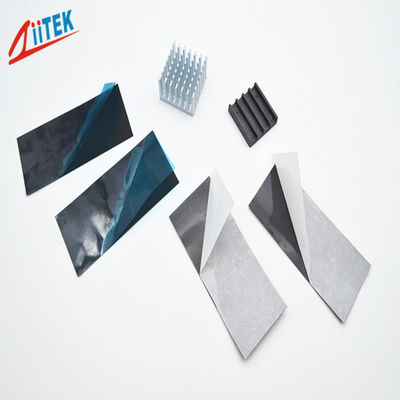

Wholesale 1700 W/MK Ultra Thin Carbon Nano Composite Copper Foil Thin Graphite Sheet

Wholesale 1700 W/MK Ultra Thin Carbon Nano Composite Copper Foil Thin Graphite Sheet
Wholesale 1700 W/MK Ultra Thin Carbon Nano Composite Copper Foil Thin Graphite Sheet
video play

Large Image :  Wholesale 1700 W/MK Ultra Thin Carbon Nano Composite Copper Foil Thin Graphite Sheet

Product Details:
Place of Origin: China
Brand Name: ziitek
Certification: RoHs
Model Number: TIR™312
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: 1000pcs/bag
Delivery Time: 2-3 work days
Detailed Product Description
Products Name: Wholesale 1700 W/MK Ultra Thin Carbon Nano Composite Copper Foil Thin Graphite Sheet Color: Black
Material: Synthetic Graphite Hardness: 85 Shore A
Operation Temperature: -40℃ ~400℃ Volume Resistivity: 3.2X10³ Ohm-meter
Keywords: Thermal Graphite Sheet
Highlight:

pyrolytic graphite sheet

,

thin graphite sheet

,

Copper Foil Thin Graphite Sheet

Wholesale 1700 W/MK Ultra Thin Carbon Nano Composite Copper Foil Thin Graphite Sheet



TIR300 Series products are high performance thermal conductive interface materials. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus maximizes the ability of heat conduction.



TIR300 Series Datasheet-(E).pdf



Feature



Easy to assemble
Ultra-thin type
RoHS Compliant
Thermal Conductivity: 1700W/mK
Reduce hot spots and protect sensitive areas
Light weight
Flexible
Ease of manufacturing for high volume production



Application



PDP,LCD TV
Laptop,Notebook,Projector
Mobile phone
Automotive electronics
displays, lighting, telecom
Hand‐held devices
Set top box
LED Power Supply
LED Controller
LED Lights
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters
Rainproof LED Power Supply
Waterproof LED Power Supply
Piranha wroof and common lED module
LED module for Channelletters
SMD LED module
LED Flesible strip, LED bar
LED PanelLight


Wholesale 1700 W/MK Ultra Thin Carbon Nano Composite Copper Foil Thin Graphite Sheet 0



Typical Properties of TIRTM300 series
Product Name TIRTM312 TIRTM317 TIRTM325 TIRTM332 TIRTM340 Test Method
Colour Black Visual
Material Synthetic graphite
Thickness 0.012 mm 0.017 mm 0.025 mm 0.035 mm 0.040 mm ASTM D751
Thickness Tolerance +/- 10% +/- 10% +/- 10% +/- 10% +/- 10% ASTM D751
Density 1.9 g/cc 2.0 g/cc 1.8 g/cc 1.9 g/cc 1.8 g/cc ASTM D297
Hardness 85 Shore A ASTM D2240
Operation Temperature -40℃ ~400℃ *****
Volume Resistivity 3.2X103 Ohm-meter ASTM D257
Typical Thermal Conductivit (In Z axis) 4.2W/m-K 5.0W/m-K 6.0 W/m-K 8.0 W/m-K 12 W/m-K ASTM D5470
Typical Thermal Conductivity (In X-Y axis) 1600 W/m-K 1700 W/m-K

1500

W/m-K

1400

W/m-K

1200

W/m-K

*****
Thermal Resistance @100psi 0.028
In²℃/W
0.030
In²℃/W
0.035
In²℃/W
0.045
In²℃/W
0.060
In²℃/W
ASTM D5470



Standard Sheets Sizes :

1. 185mm x 220mm

2. 195mm x 240mm

3. 220mm x 320mm

TIR™ 300 series Individual die cut shapes can be supplied..

Consult the factory alternate thickness.





Packaging Details & Lead time



The packaging of Thermal Graphite Sheet

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Wholesale 1700 W/MK Ultra Thin Carbon Nano Composite Copper Foil Thin Graphite Sheet 1



Company profile



Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



Certifications:



ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL



Wholesale 1700 W/MK Ultra Thin Carbon Nano Composite Copper Foil Thin Graphite Sheet 2



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
