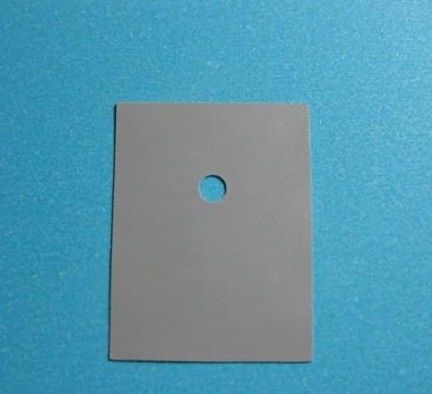

Thickness 0.457mm Thermal Insulation Pad Thermal Insulation Materials In Power Semiconductors

Large Image : Thickness 0.457mm Thermal Insulation Pad Thermal Insulation Materials In Power Semiconductors

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TIS818

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3Word days
Payment Terms:	T/T
Supply Ability:	100000PCS/Day

Contact Now

Detailed Product Description

Product Name:	Thickness 0.457mm Thermal Insulation Pad Thermal Insulation Materials In Power Semiconductors	Color:	Grey
The Thickness Of The:	0.457mm	Tensile Strength:	>1500psi
Dielectric Breakdown Voltage:	>1500 VAC	Thermal Conductivity:	1.6W/mK
Fire Rating:	94-V0	Keywords:	Thermal Insulation Pads
Highlight:	heat insulation materials , thermal insulator materials , 0.457mm Thermal Insulation Materials

Thickness 0.457mm Thermal Insulation Pad Thermal Insulation Materials In Power Semiconductors

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

The TIS^TM800 Series is acomposite of silicone rubber and fiberglass. The material is flame retardant and is specially formulated for use as a thermakky conductive insulator,The primary use for TIS^TM800 is to electrically isolate power sources from heat sinks.TIS^TM800 has excellent mechanical and physical characteristics.Surfaces are pliable and allow complete surface contact with excellent heat.

Features

> Soft and High thermal conductive
> High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

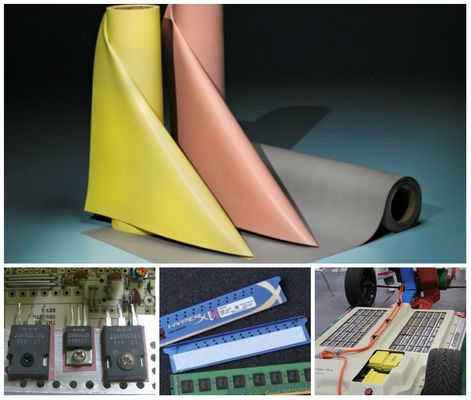

Applications

> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface

Typical Properties of TIS^TM818 Series
Product Name	TIS^TM818	Test Method
Color	Gray	Visual
Construction &Compostion	Ceramic filled silicone elastomer /Fiberglass	*****
Thickness range	0.457mm	ASTM D751
Specific Gravity	2.2 g/cc	ASTM D297
Hardness	65 Shore A	ASTM 2240
Tensile Strength	> 1500 psi	ASTM D412
Continuos Use Temp	-45 to 180℃	*****
Dielectric Breakdown Voltage	>1500 VAC	ASTM D149
Dielectric Constant @ 1MHz	5.5	ASTM D150
Volume Resistivity	≥1.0X10¹² Ohm-meter	ASTM D257
Fire rating	94 V0	equivalent UL
Thermal conductivity	1.6 W/mK	ASTM D5470
Thermal conductivity	1.6W/mK	ISO22007-2

Product Thicknesses
TIS 805: 0.127mm
TIS 806: 0.152mm
TIS 808: 0.203mm
TIS 810: 0.254mm
TIS 812: 0.304mm
TIS 818: 0.457mm

Product Sizes
8" x 160(203mm x 48.76M)

Individual die cut shapes and custom thickness can be supplied.Please contact us for confirming.

Safe disposal method does not require special protection. The storage condition is low temperature and dry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
